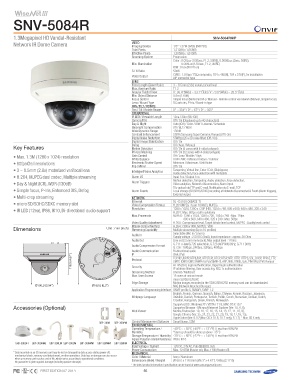

P. 56
-5084R
1.3Megapixel HD Vandal-Resistant SNV-5084RN/P
Network IR Dome Camera Video 1/3" 1.37M CMOS (IMX238)
Imaging Device 1,312(H) x 1,069(V)
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive
Scanning System Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, 50IRE),
Min. Illumination 0.005Lux (1/30sec, F1.2, 30IRE)
B/W : 0Lux (IR LED on)
Key Features S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
• Max. 1.3M (1280 x 1024) resolution Lens DIP connector type
• 60fps@all resolutions Focal Length (Zoom Ratio)
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Max. Aperture Ratio 3 ~ 8.5mm (2.8x) motorized varifocal
• H.264, MJPEG dual codec, Multiple streaming Angular Field of View F1.2
• Day & Night (ICR), WDR (130dB) Min. Object Distance H : 93.4°(Wide) ~ 33.1°(Tele) / V : 73.8°(Wide) ~ 26.5°(Tele)
• Simple focus, P-Iris, Enhanced DIS, Defog Focus Control 0.5m (1.64ft)
• Multi-crop streaming Lens / Mount Type Simple focus (Motorized V/F) / Manual - Remote control via network (Manual, Simple focus)
• micro SD/SDHC/SDXC memory slot Pan / Tilt / Rotate DC auto iris, P-Iris / Board-in type
• IR LED (12ea), IP66, IK10, Bi-directional audio support Pan / Tilt / Rotate Range
Operational 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
IR LED / Viewable Length
Camera Title 12ea / 30m (98.43ft)
Day & Night Off / On (Displayed up to 40 characters)
Backlight Compensation Auto (ICR) / Color / B/W / External / Schedule
Wide Dynamic Range Off / BLC / WDR
Contrast Enhancement 130dB
Digital Noise Reduction SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Image Stabilization SSNRIII (2D+3D noise filter) (Off / On)
Defog Off / On
Motion Detection Off / Auto / Manual
Privacy Masking Off / On (4 zones with 4-sided polygon)
Gain Control Off / On (32 zones with 4-sided polygon)
White Balance Off / Low / Middle / High
Electronic Shutter Speed ATW / AWC / Manual / Indoor / Outdoor
Flip / Mirror Minimum / Maximum / Anti flicker
Intelligent Video Analytics Off / On
Alarm I/O Tampering, Virtual line, Enter / Exit, (Dis)Appear,
Alarm Triggers Audio detection, Face detection with metadata
Input 1ea / Output 1ea
Alarm Events Motion detection, Tampering, Audio detection, Face detection,
Video analytics, Network disconnection, Alarm input
Network File upload via FTP and E-mail, Notification via E-mail, TCP
Ethernet Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
Video Compression Format External output
Resolution
RJ-45 (10/100BASE-T)
Max. Framerate H.264 (MPEG-4 part 10/AVC), MJPEG
1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Dimensions Unit : mm (inch) Video Quality Adjustment H.264 : Max. 60fps at all resolutions
Bitrate Control Method MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps
11118.8.55 ((44..667"7)") Streaming Capability
Audio In 800 x 600, 640 x 480, 320 x 240 : Max. 30fps
Audio Out H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Audio Compression Format H.264 : CBR or VBR, MJPEG : VBR
Audio Communication Multiple streaming (Up to 10 profiles)
IP Selectable (Mic in / Line in)
Protocol Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Line out (3.5mm mono jack), Max output level : 1 Vrms
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Bi-directional audio
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
HTTPS(SSL) login authentication, Digest login authentication
Security IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC
Edge Storage Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
ØØ110000..00((33.9.49"4) ") ØØ116600..00(6(6.3."3) ") NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SBP-300B SBP-300PM Central Management Software SmartViewer, SSM
Environmental
SHD-3000F1 SBP-300HM6 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Operating Temperature / -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Humidity *Start up should be done at above -35°C
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
when a memory card reaches end of life, which varies according to operational conditions. Ingress Protection / Vandal Resistance IP66 / IK10
No guarantee is given against damage (including passive damage). Electrical
Input Voltage / Current 12V DC, 24V AC, PoE (IEEE802.3af)
Power Consumption Max. 12.95W (Heater on), Max. 11W (Heater off)
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) / Weight Ø160.0 x 118.5mm (Ø6.3" x 4.67") / 985g (2.17 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 56
