P. 52
-5084

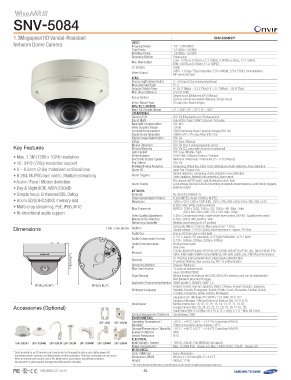

1.3Megapixel HD Vandal-Resistant SNV-5084N/P
Network Dome Camera Video 1/3" 1.3M CMOS
Imaging Device 1,312(H) x 1,069(V)
Key Features Total Pixels 1,305(H) x 1,049(V)
• Max. 1.3M (1280 x 1024) resolution Effective Pixels Progressive
• 16 : 9 HD (720p) resolution support Scanning System Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, F1.2, 50IRE)
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Min. Illumination B/W : 0.005Lux (1/30sec, F1.2, 50IRE)
• H.264, MJPEG dual codec, Multiple streaming S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Lens DIP connector type
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 93.3°(Wide) ~ 33.2°(Tele) / V : 73.7°(Wide) ~ 26.6°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual
Lens / Mount Type Remote control via network (Manual, Simple focus)
Pan / Tilt / Rotate DC auto iris / Board-in type
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational Off / On (Displayed up to 40 characters)
Camera Title Auto (ICR) / Color / B/W / External / Schedule
Day & Night Off / BLC
Backlight Compensation 130dB
Wide Dynamic Range SSDR (Samsung Super Dynamic Range) (Off / On)
Contrast Enhancement SSNRIII (2D+3D noise filter) (Off / On)
Digital Noise Reduction Off / On
Digital Image Stabilization Off / Auto / Manual
Defog Off / On (4ea 4 points polygonal zones)
Motion Detection Off / On (32 zones with 4 points of polygonal)
Privacy Masking Off / Low / Middle / High
Gain Control ATW / AWC / Manual / Indoor / Outdoor
White Balance Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Electronic Shutter Speed Off / On
Flip / Mirror Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Intelligent Video Analytics Input 1ea / Output 1ea
Alarm I/O Motion detection, Tampering, Audio detection, Face detection,
Alarm Triggers Video analytics, Network disconnection, Alarm input
• Audio / Face / Motion detection Alarm Events File upload via FTP and E-mail, Notification via E-mail
• Day & Night (ICR), WDR (130dB) Network Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
• Simple focus, Enhanced DIS, Defog Ethernet External output
• micro SD/SDHC/SDXC memory slot Video Compression Format RJ-45 (10/100BASE-T)
Resolution H.264 (MPEG-4 part 10/AVC), MJPEG
1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
H.264 : Max. 60fps at all resolutions
• Multi-crop streaming, PoE, IP66, IK10 Max. Framerate MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps
• Bi-directional audio support 800 x 600, 640 x 480, 320 x 240 : Max. 30fps
Dimensions Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
ØØ110000..00((33.9.49"4) ") Streaming Capability Multiple streaming (Up to 10 profiles)
Selectable (Mic in / Line in), Max output level : 1 Vrms
Unit : mm (inch) Audio In Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
ØØ116600..00(6(6.3."3) ")
Audio Out Line out (3.5mm stereo mini jack)
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Compression Format G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
11118.8.55 ((44..667"7)") Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC
Edge Storage Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Webpage Language Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
SBP-300B SBP-300PM Humidity *Start up should be done at above -35°C
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
SHD-3000F1 SBP-300HM6 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Ingress Protection IP66
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Vandal Resistance IK10
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Electrical
when a memory card reaches end of life, which varies according to operational conditions. Input Voltage / Current 12V DC, 24V AC, PoE (IEEE802.3af class3)
No guarantee is given against damage (including passive damage). Power Consumption Max. 12.95W (PoE - Heater on), Max. 14W (12V DC, 24V AC - Heater off)
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø160.0 x 118.5mm (Ø6.3" x 4.67")
Weight 985g (2.17 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 52
