Page 51 - Catalog Samsung 2014
P. 51
-6012M

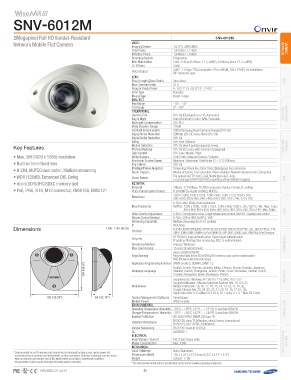

2Megapixel Full HD Vandal-Resistant SNV-6012M
Network Mobile Flat Camera Video 1/2.8" 2.38M CMOS NETWORK
Imaging Device 1,952(H) x 1,116(V) Camera
Key Features Total Pixels 1,944(H) x 1,104(V)
• Max. 2M (1920 x 1080) resolution Effective Pixels Progressive NVR
• Built-in 3mm fixed lens Scanning System Color : 0.3Lux (1/30sec, F1.2, 50IRE), 0.005Lux (2sec, F1.2, 50IRE)
• H.264, MJPEG dual codec, Multiple streaming Min. Illumination 50dB NETWORK
• WDR (120dB), Enhanced DIS, Defog S / N Ratio CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation PERIPHERAL
• micro SD/SDHC/SDXC memory slot Video Output DIP connector type
• PoE, IP66, IK10, M12 connector, EN50155, EN50121 Lens Analogue
Focal Length (Zoom Ratio) 3mm fixed Camera
Max. Aperture Ratio F2.0
Angular Field of View H : 103.1° / V : 53.9° / D : 124.5° DVR
Lens Type Fixed iris
Mount Type Board-in type
Pan / Tilt
Pan Range -10° ~ 10°
Tilt Range 0° ~ 90°
Operational
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (Electrical) / Color / B/W / Schedule
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Noise Reduction Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection
Alarm Triggers Motion detection, Face detection, Video analytics, Network disconnection, Tampering
Alarm Events File upload via FTP and E-mail, Notification via E-mail,
Network Local storage (SD/SDHC/SDXC) recording at Event (Alarm triggers)
Ethernet
Video Compression Format 10Base-T / 100Base-TX, M12 connector (4poles, Female, D-coding)
Resolution H.264 (MPEG-4 part 10/AVC), MJPEG
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264 : Max. 60fps at all resolutions LENS
MJPEG : 1 920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method
Streaming Capability H.264 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 10 profiles)
IP IPv4, IPv6
Dimensions Unit : mm (inch)
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication PERIPHERAL
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access
15 users at unicast mode
Edge Storage micro SD/SDHC/SDXC
Recorded data in the SDX/SDHC/SD memory card can be downloaded
11152.42.5( (4.4.594")") NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, MONITOR
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8, 7),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
112355.2.2 ((54..3923"")) 5524..03 ((22..1045")") Central Management Software SmartViewer
Mobile Viewer iPOLiS mobile
Environmental CONTROLLER
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IEC 60529 IP66, NEMA 250 type 4X
Vibration Resistance EN 50155 class T3 (Vibration, shock, bump, temperature)
EN 50121, ISO 16750-3 (Vibration)
Vandal Resistance IEC 62262 class IK10 (20J)
UL UL60590-1
Electrical Access Control
Input Voltage / Current PoE (Class A type only) System
Power Consumption
Mechanical Max. 7.5W
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Color / Material Ivory / Aluminum
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Dimensions (WxH)
when a memory card reaches end of life, which varies according to operational conditions. Weight 135.2 x 54.3 x 124.5mm (5.32" x 2.14" x 4.9")
No guarantee is given against damage (including passive damage).
530g (1.17 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 07-2014 51
