-VA10

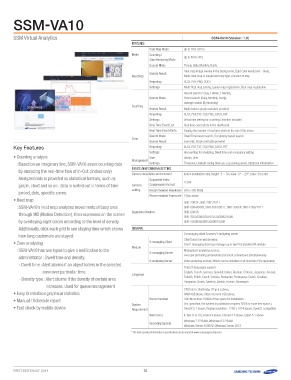

SSM Virtual Analytics SSM-VA10 (Version : 1.0)
Key Features Features
• Counting analysis
Mode Heat Map Mode Up to 16CH (1PC)
: Based on an imaginary line, SSM-VA10 saves counting data Up to 8CH (1PC)
by analyzing the real-time flow of In-Out. (Indoor only) Counting /
Analyzed data is provided as statistical formats, such as Zone Analyzing Mode
graph, chart and so on : data is sorted out in terms of time
period, date, specific zones. Search Mode Timely, Daily, Monthly, Yearly
• Heat map
: SSM-VA10’s heat map analyzes movements of busy area Heat Map Search Result Heat map image overlay in the background, Eight color levels (red ~ blue),
through MD (Motion Detection), then expresses on the screen Multi-Heat map or single heat map type, Duration of stay
by overlaying eight colors according to the level of density.
Additionally, click each grid to see staying time which shows Reporting XLSX, PDF, PNG, DOCX
how long customers are stayed. Settings Multi-Heat map setting, Layout map registration, Heat map registration
• Zone analyzing
: S SM-VA10 has two types to give a notification to the Counting Search Mode Recent search (1 Day, 1 Week, 1 Month),
administrator : Dwell time and density. Period search (Daily, Monthly, Yearly),
- Dwell time : Alert alarms if an object loiters in the selected Search Result Average search (By time/day)
Reporting
zone over particular time. Settings Multi devices graph and table provided
- Density type : A lert alarms if the density of certain area XLSX, PDF, TXT, CSV, PNG, DOCX, RTF
Virtual line setting for counting, Direction included
increases. Used for queue management
• Easy UI interface graphical statistics Real Time Event List Real time event alerts in the dashboard
• Manual / Schedule report Real Time Event Alerts Display the number of real time alerts in the top of the menu
• Fast check by mobile device
Zone Search Mode Dwell Time based search, Occupancy based search
Search Result Event list, Graph and table provided
XLSX, PDF, TXT, CSV, PNG, DOCX, RTF
Reporting
Settings Area setting for analyzing, Dwell time and occupancy setting
Management User Admin, User
Timezone, Daylight saving time use, Log saving period, Database initialization
Settings
Device (N/W Cmnera) setting Indoor installation only, Height : 3 ~ 7m, View : 0° ~ 20°, Area : 5m x 4m
Camera installation environment
Camera Supported Video H.264
setting Compression Format
Recommended Resolution 640 x 480 (VGA)
Recommended Framerate 15fps above
Supported Devices SND-7082/F, SND-7061/7011
SND-6084/6083, SND-5061/5011, SND-3082/F, SND-1080/1011
SND-6084R
SNV-7082/5080/5010/3120/3082/1080
SNV-7080R/6084R/5080R/1080R
General
Module V-managing Client V-managing client & server, V-analyzing server
Client based on web browser,
V-managing Server One V-managing client can manage up to two PCs installed VA module
V-analyzing Server
Managing V-analyzing servers,
Five user (including administrator) account connections simultaneously
Video analyzing module, Which can be installed on at most two PCs separately
Language Total 23 languages support
English, French, German, Spanish, Italian, Russian, Chinese, Japanese, Korean,
Turkish, Polish, Czech, Serbian, Romanian, Portuguese, Dutch, Croatian,
Hungarian, Greek, Swedish, Danish, Finnish, Norwegian
Recommended CPU Intel i7 (Ivy Bridge 3rd gen.) above,
System RAM 4GB above, Video memory 1GB above,
Requirement HDD More than 100GB of free space for installation.
(For operation, the system log database requires 50GB or more free space.),
Web Client DirectX 8.1 above, Display resolution : 1280 x 1024 above, OpenGL compatible
Operating System IE (Ver 8, 9, 10), Firefox 9 above, Chrome 15 above, Safari 5.1 above
Windows 7 32/64bit, Windows 8 32/64bit
Windows Server 2008 R2, Windows Server 2012
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 76
