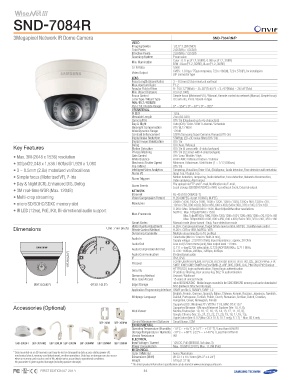

3Megapixel Network IR Dome Camera SND-7084RN/P
Key Features Video 1/2.8" 3.2M CMOS
Imaging Device 2,065(H) x 1,565(V)
• Max. 3M (2048 x 1536) resolution Total Pixels 2,065(H) x 1,553(V)
• 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080 Effective Pixels Progressive
• 3 ~ 8.5mm (2.8x) motorized varifocal lens Scanning System Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE)
• Simple focus (Motorized VF), P-Iris Min. Illumination B/W : 0Lux (F1.2, 50IRE), 0Lux (F1.2, 30IRE)
• Day & Night (ICR), Enhanced DIS, Defog S / N Ratio 50dB
• 3M real-time WDR (Max. 120dB) Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
• Multi-crop streaming Lens DIP connector type
• micro SD/SDHC/SDXC memory slot Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type / Mount Type DC auto iris, P-Iris / Board-in type
Pan / Tilt / Rotate 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Pan / Tilt / Rotate Range 12ea
Operational 25m (82.02ft)
IR LED Off / On (Displayed up to 45 characters)
Viewable Length Auto (ICR) / Color / B/W / External / Schedule
Camera Title Off / BLC / WDR
Day & Night 120dB
Backlight Compensation SSDR (Samsung Super Dynamic Range) (Off / On)
Wide Dynamic Range SSNRIII (2D+3D noise filter) (Off / On)
Contrast Enhancement Off / On
Digital Noise Reduction Off / Auto / Manual
Digital Image Stabilization Off / On (4 zones with 4-sided polygon)
Defog Off / On (32 zones with 4-sided polygon)
Motion Detection Off / Low / Middle / High
Privacy Masking ATW / AWC / Manual / Indoor / Outdoor
Gain Control Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
White Balance Off / On
Electronic Shutter Speed Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection with metadata
Flip / Mirror Input 1ea / Output 1ea
Intelligent Video Analytics Motion detection, Tampering, Audio detection, Face detection, Network disconnection,
Alarm I/O Video analytics, Alarm input
Alarm Triggers File upload via FTP and E-mail, Notification via E-mail,
Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
Alarm Events RJ-45 (10/100BASE-T)
Network H.264 (MPEG-4 part 10/AVC), MJPEG
Ethernet 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
Video Compression Format 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Resolution
• IR LED (12ea), PoE, IK8, Bi-directional audio support H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions
MJPEG : M ax. 10fps@2048 x 1536
Max. Framerate Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Smart Codec Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Video Quality Adjustment Manual mode (Area-based : 5ea), Face detection mode
H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Dimensions Unit : mm (inch) Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Selectable (Mic in / Line in / Built-in mic),
Audio In Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
Audio Compression Format G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
10170.7.66((44..224"4)") Audio Communication Bi-directional audio
IP IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
Protocol SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
micro SD/SDHC/SDXC - Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
ØØ9977..00(3(3.8.28")2") Ø1Ø31322..11 ((55.2.2")") Edge Storage NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Webpage Language Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian,
Hungarian, Greek, Norwegian, Finnish
Accessories (Optional) Web Viewer Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 10, 9, 8),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SBP-300B SBP-300PM Central Management Software SmartViewer, SSM
Environmental
SHD-3000F1 SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300KM Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
mechanical shock, memory card detachment, or other operations. Data loss or damage can also occur Vandal Resistance IK8
when a memory card reaches end of life, which varies according to operational conditions. Electrical
No guarantee is given against damage (including passive damage). Input Voltage / Current 12V DC, PoE (IEEE802.3af class 3)
Power Consumption Max. 10.0W (12V DC), Max. 11.0W (PoE)
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø132.1 x 107.6mm (Ø5.2" x 4.24")
Weight 575g (1.27 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
FIRST EDITION 07-2014 44
