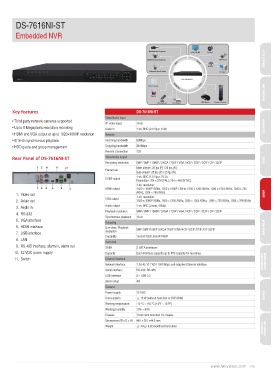

Page 179 - Catalog Hikvision 2014
P. 179
7616NI-ST
Embedded NVR
Network Box Cameras VGA / HDMI Speaker PTZ DOME
Network Dome Cameras DS-7616NI-ST
ACCESSIES INPUT OUTPUT Cell Phone
Network Speed Dome PC Client
Router
Door Contact
control NETWORK
Alarm USB Device USB Mouse Remote Control
Microphone
Key features Video/Audio input DS-7616NI-ST ANALOG
IP video input
• Third-party network cameras supported Audio in 16-ch DVR
• Up to 5 Megapixels resolution recording Network 1-ch, BNC (2.0 Vp-p, 1kΩ)
• HDMI and VGA output at up to 1920×1080P resolution Incoming bandwidth NVR
• 8/16-ch synchronous playback Outgoing bandwidth 80Mbps
• HDD quota and group management Remote Connection 240Mbps ATM DVR
Video/Audio output 128
Rear Panel of DS-7616NI-ST Recording resolution ENCODER
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF DECODER
1. Video out Frame rate Main stream: 25 fps (P) / 30 fps (N)
2. Aduio out Sub-stream: 25 fps (P) / 30 fps (N)
3. Audio in CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω)
4. RS-232 Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
5. VGA interface HDMI output 1-ch, resolution:
6. HDMI interface 1920 × 1080P /60Hz, 1920 × 1080P / 50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720
7. USB interface VGA output /60Hz, 1024 × 768 /60Hz
8. LAN 1-ch, resolution:
9. RS-485 interface, alarm in, alarm out Audio output 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
10. 12 VDC power supply Playback resolution 1-ch, BNC (Linear, 600Ω)
11. Switch Synchronous playback 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding 16-ch
Live view / Playback CARD
resolution 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Capability 16-ch@720P, 8-ch@1080P NETWORK
Hard disk STORAGE
SATA 2 SATA interfaces
Capacity Each interface supports up to 4TB capacity for recording
External interface
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Serial interface RS-232; RS-485;
USB interface 2 × USB 2.0
Alarm in/out 4/2
General
Power supply 12 VDC
Consumption ≤ 13 W (without hard disk or DVD-R/W)
Working temperature -10 ºC ~ +55 ºC (14ºF ~ 131ºF)
Working humidity 10% ~ 90%
Chassis 19-ich rack-mounted 1U chassis
Dimensions (W x D x H) 445 × 261 ×44.5 mm
Weight ≤ 4 Kg / 8.82 lb(without hard disk)
