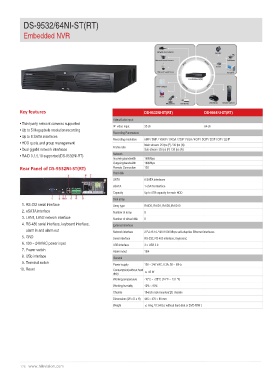

Page 176 - Catalog Hikvision 2014

-9532/64NI-ST(RT) Network Box Cameras Speaker
Network Dome Cameras
Embedded NVR ACCESSIES INPUT OUTPUT Cell Phone
Network Speed Dome PC Client
Key features Router
Door Contact
• Third-party network cameras supported DS-9500NI-ST(RT)
• Up to 5 Megapixels resolution recording
• Up to 8 SATA interfaces control
• HDD quota and group management
• Dual gigabit network interfaces Alarm USB Device USB Mouse Remote Control
• RAID 0,1,5,10 supported (DS-9532NI-RT) Microphone

Rear Panel of DS-9532NI-ST(RT) DS-9532NI-ST(RT) DS-9564NI-ST(RT)

1. RS-232 serial interface Video/Audio input
2. eSATA interface
3. LAN1, LAN2 network interface IP video input 32-ch 64-ch
4. RS-485 serial interface, keyboard interface,
Recording Parameters
alarm in and alarm out
5. GND Recording resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
6. 100 ~ 240VAC power input Main stream: 25 fps (P) / 30 fps (N)
7. Power switch Frame rate Sub-stream: 25 fps (P) / 30 fps (N)
8. USb interface
9. Terminal switch Network 160Mbps
10. Reset Incoming bandwidth 160Mbps
Outgoing bandwidth 128
Remote Connection
Hard disk

SATA 8 SATA interfaces

eSATA 1 eSATA interface

Capacity Up to 4TB capacity for each HDD

Disk array

Array type RAID0, RAID1, RAID5, RAID10

Number of array 8

Number of virtual disk 8

External interface

Network interface 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces

Serial interface RS-232; RS-485 interface; Keyboard;

USB interface 3 × USB 2.0

Alarm in/out 16/4

General

Power supply 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz

Consumption(without hard ≤ 45 W
disk)

Working temperature -10°C ~ +55°C (14 °F ~ 131 °F)

Working humidity 10% ~ 90%

Chassis 19-inch rack-mounted 2U chassis

Dimensions (W x D x H) 445 × 470 × 90 mm

Weight ≤ 8 kg /17.64 lb ( without hard disk or DVD-R/W )
