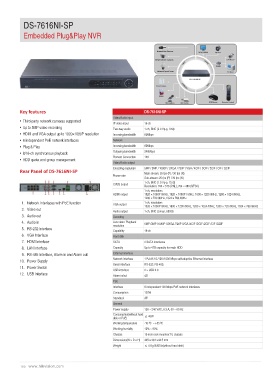

Page 180 - Catalog Hikvision 2014
P. 180
7616NI-SP
Embedded Plug&Play NVR
Network Box Cameras VGA / HDMI Speaker
Network Dome Cameras DS-7616NI-SP
ACCESSIES INPUT OUTPUT Cell Phone
Network Speed Dome PC Client
Router
Door Contact
control
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-7616NI-SP
• Third-party network cameras supported Video/Audio input
• Up to 5MP video recording
• HDMI and VGA output up to 1920×1080P resolution IP video input 16-ch
• 8 independent PoE network interfaces
• Plug & Play Two-way audio 1-ch, BNC (2.0 Vp-p, 1kΩ)
• 8/16-ch synchronous playback
• HDD quota and group management Incoming bandwidth 80Mbps
Rear Panel of DS-7616NI-SP Network
1. Network Interfaces with PoE function Incoming bandwidth 80Mbps
2. Video out
3. Audio out Outgoing bandwidth 240Mbps
4. Audio in
5. RS-232 Interface Remote Connection 128
6. VGA Interface
7. HDMI Interface Video/Audio output
8. LAN Interface
9. RS-485 Interface, Alarm in and Alarm out Encoding resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
10. Power Supply
11. Power Switch Frame rate Main stream: 25 fps (P) / 30 fps (N)
12. USB Interface CVBS output Sub-stream: 25 fps (P) / 30 fps (N)
1-ch, BNC (1.0 Vp-p, 75 Ω)
HDMI output Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
1-ch, resolution:
VGA output 1920 × 1080P /60Hz, 1920 × 1080P / 50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz,
Audio output 1280 × 720 /60Hz, 1024 × 768 /60Hz
1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
1-ch, BNC (Linear, 600Ω)
Decoding 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Live view / Playback 16-ch
resolution
Capability
Hard disk
SATA 2 SATA interfaces
Capacity Up to 4TB capacity for each HDD
External interface
Network interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Serial interface RS-232; RS-485;
USB interface 2 × USB 2.0
Alarm in/out 4/2
PoE
Interface 8 independent 100 Mbps PoE network interfaces
Consumption 120W
Standard AF
General
Power supply 100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz
Consumption(without hard ≤ 40W
disk or PoE)
Working temperature -10 ºC ~ +55 ºC
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1U chassis
Dimensions(W × D × H) 445 × 261 ×44.5 mm
Weight ≤ 4 Kg /8.82 lb(without hard disk)
180 www.hikvision.com
