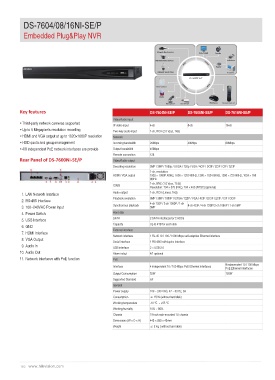

Page 182 - Catalog Hikvision 2014
P. 182
7604/08/16NI-SE/P
Embedded Plug&Play NVR
Network Box Cameras VGA / HDMI Speaker
Network Dome Cameras DS-7600NI-SE/P
ACCESSIES INPUT OUTPUT Cell Phone
Network Speed Dome PC Client
Router
Door Contact
control
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-7604NI-SE/P DS-7608NI-SE/P DS-7616NI-SE/P
• Third-party network cameras supported Video/Audio input 4-ch 8-ch 16-ch
• Up to 5 Megapixels resolution recording IP video input 1-ch, RCA (2.0 Vp-p, 1kΩ)
• HDMI and VGA output at up to 1920×1080P resolution Two-way audio input
• HDD quota and group management Network 20Mbps 40Mbps 80Mbps
• 4/8 independent PoE network interfaces are provide Incoming bandwidth 40Mbps
Output bandwidth 128
Rear Panel of DS-7600NI-SE/P Remote connection
Video/Audio output 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
1. LAN Network Interface Decoding resolution 1-ch, resolution:
2. RS-485 Interface 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768
3. 100~240VAC Power Input HDMI / VGA output /60Hz
4. Power Switch 1-ch, BNC (1.0 Vp-p, 75 Ω)
5. USB Interface CVBS Resolution: 704 × 576 (PAL); 704 × 480 (NTSC) (optional)
6. GND 1-ch, RCA (Linear, 1kΩ)
7. HDMI Interface Audio output
8. VGA Output Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
9. Audio In
10. Audio Out Synchronous playback 4-ch 720P / 2-ch 1080P / 1-ch 8-ch 4CIF / 4-ch 720P/ 2-ch 1080P / 1-ch 5MP
11. Network Interfaces with PoE function 5MP
Hard disk
SATA 2 SATA interfaces for 2 HDDs
Capacity Up to 4TB for each disk
External interface
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Serial interface 1 RS-485 half-duplex interface
USB interface 2 × USB 2.0
Alarm in/out 4/1 optional
PoE
4 independent 10 / 100 Mbps PoE Ethernet interfaces 8 independent 10 / 100 Mbps
Interface PoE Ethernet interfaces
52W 120W
Output Consumption AF
Supported Standard
General 100 ~ 240 VAC, 47 ~ 63 Hz, 3A
Power supply ≤ 15 W (without hard disk)
Consumption -10 °C ~ +55 °C
Working temperature 10% ~ 90%
Working humidity 19-inch rack-mounted 1U chassis
Chassis 445 × 290 × 45mm
Dimensions (W × D × H) ≤ 2 Kg ( without hard disk)
Weight
182 www.hikvision.com
