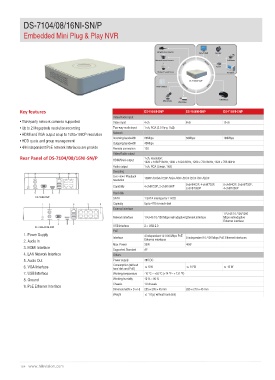

Page 184 - Catalog Hikvision 2014
P. 184
7104/08/16NI-SN/P
Embedded Mini Plug & Play NVR
Network Box Cameras VGA / HDMI Speaker
Network Dome Cameras DS-7100NI-SN/P
ACCESSIES INPUT OUTPUT Cell Phone
Network Speed Dome PC Client
Router
Door Contact
control
Microphone USB Mouse
USB Device
Key features DS-7104NI-SN/P DS-7108NI-SN/P DS-7116NI-SN/P
• Third-party network cameras supported Video/Audio input 4-ch 8-ch 16-ch
• Up to 2 Megapixels resolution recording Video input 1-ch, RCA (2.0 Vp-p, 1kΩ)
• HDMI and VGA output at up to 1920×1080P resolution Two-way audio input
• HDD quota and group management Network 25Mbps 50Mbps 100Mbps
• 4/8 independent PoE network interfaces are provide Incoming bandwidth 40Mbps
Outgoing bandwidth 128
Rear Panel of DS-7104/08/16NI-SN/P Remote connection
Video/Audio output 1-ch, resolution:
DS-7104NI-SN/P 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
HDMI/VGA output 1-ch, RCA (Linear, 1kΩ)
DS-7108&7616NI-SN/P
Audio output 1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
1. Power Supply Decoding
2. Audio In Live view / Playback 4-ch@720P, 2-ch@1080P 8-ch@4CIF, 4-ch@720P, 8-ch@4CIF, 8-ch@720P,
3. HDMI Interface resolution 2-ch@1080P 4-ch@1080P
4. LAN Network Interface
5. Audio Out Capability 1 SATA interface for 1 HDD
6. VGA Interface Up to 4TB for each disk
7. USB Interface Hard disk
8. Ground SATA 1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface 1 RJ-45 10 /100/1000
9. PoE Ethernet Interface Capacity 2 × USB 2.0 Mbps self-adaptive
External interface Ethernet interface
Network interface 4 independent 10 /100 Mbps PoE 8 independent 10 /100 Mbps PoE Ethernet interfaces
Ethernet interfaces 40W
USB interface 35W
PoE AF
Interface 48V DC
Max. Power ≤6W ≤ 10 W ≤ 15 W
Supported Standard
Others -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Power supply
Consumption (without 10 % ~ 90 %
hard disk and PoE)
Working temperature 1U chassis
Working humidity
Chassis 255 × 205 × 45 mm 285 × 210 × 45 mm
Dimensions(W × D × H)
Weight ≤ 1 Kg ( without hard disk)
