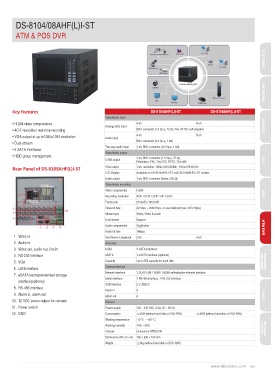

P. 189
8104/08AHF(L)I-ST
ATM & POS DVR
PTZ DOME
DS-8104/08AHF(L)I-ST NETWORK
Key features DS-8104AHF(L)I-ST DS-8108AHF(L)I-ST
• H.264 video compression Video/Audio input ANALOG
• 4CIF resolution real-time recording
• VGA output at up to1280×1024 resolution Analog video input 4-ch 8-ch
• Dual-stream BNC connector (1.0 Vp-p, 75 Ω); PAL / NTSC self-adaptive
• 4 SATA interfaces
• HDD group management Audio input 4-ch 8-ch
BNC connector (2.0 Vp-p, 1 kΩ)
Rear Panel of DS-8108AHF(L)I-ST
Two-way audio input 1-ch, BNC connector (2.0 Vp-p, 1 kΩ)
1. Video in
2. Audio in Video/Audio output
3. Video out, audio out, line in
4. RS-232 interface CVBS output 1-ch, BNC connector (1.0 Vp-p, 75 Ω); DVR
5. VGA Resolution: PAL: 704×576, NTSC: 704×480
6. LAN interface
7. eSATA backup/extended storage VGA output 1-ch, resolution: 1280×1024 /60 Hz , 1024×768 /60 Hz
interface(optional) LCD Display Available on DS-8104AHFLI-ST and DS-8108AHFLI-ST models
8. RS-485 interface
9. Alarm in, alarm out Audio output 1-ch, BNC connector (linear, 600 Ω)
10. 12 VDC power output for camera
11. Power switch Video/Audio encoding
12. GND
Video compression H.264 NVR
Recording resolution 4CIF / DCIF / 2CIF / CIF / QCIF
Frame rate 25 fps(P) / 30 fps/N
Video bit rate 32 Kbps ~ 2048 Kbps, or user defined (max. 3072 Kbps)
Stream type Video, Video & Audio
Dual stream Support ATM DVR
Audio compression OggVorbis
Audio bit rate 16kbps
Synchronous playback 2-ch 4-ch
Hard disk
SATA 4 SATA interfaces
eSATA 1 eSATA interface (optional) ENCODER
DECODER
Capacity Up to 2TB capacity for each disk
External interface
Network interface 1, RJ45 10M / 100M / 1000M self-adaptive ethernet interface
Serial interface 1 RS-485 interface, 1 RS-232 interface
USB interface 2 x USB2.0
Alarm in 9 CARD
Alarm out 4
General
Power supply 100 ~ 240 VAC, 6.3A, 50 ~ 60 Hz
Consumption ≤40W (without hard disk or DVD-R/W) ≤45W (without hard disk or DVD-R/W)
Working temperature -10 °C ~ +55 °C NETWORK
STORAGE
Working humidity 10% ~ 90%
Chassis Chassis for ATM DVR
Dimensions (W × D × H) 180 × 280 × 180 mm
Weight ≤5kg (without hard disk or DVD-R/W)
www.hikvision.com 189
