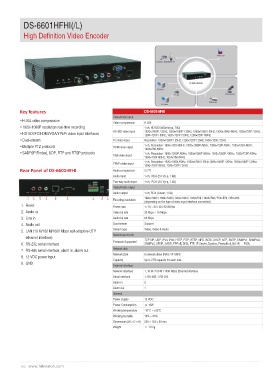

P. 192
6601HFHI(/L)
High Definition Video Encoder
DS-6601HFHI(/L)
Key features Video/Audio input DS-6601HFHI
Video compression
• H.264 video compression H.264
• 1920×1080P resolution real-time recording HD-SDI video input 1-ch, HD-SDI (800mVp-p, 75Ω)
• HD-SDI/FC/HDMI/VGA/YPbPr video input interfaces 1920×1080P / 25Hz, 1920×1080P / 30Hz, 1920×1080I / 50Hz, 1920×1080I /60Hz, 1920×720P / 25Hz,
• Dual-stream FC video input 1280×720P / 30Hz, 1920×720P / 50Hz, 1280×720P /60Hz
• Multiple PTZ protocols Resolution: 1920×1080P / 25Hz, 1280×720P / 25Hz, 1600×1200 / 25Hz
• SADP(IP Finder), UDP, RTP and RTSP protocols HDMI video input 1-ch, Resolution: 1600×1200 /60Hz, 1920×1080P /60Hz, 1280×720P /60Hz, 1280×1024 /60Hz,
1024×768 /60Hz
Rear Panel of DS-6601HFHI VGA video input 1-ch, Resolution: 1600×1200P /60Hz, 1920×1080P /60Hz, 1920×1080P / 50Hz, 1280×720P /60Hz,
1280×1024 /60Hz, 1024×768 /60Hz
1. Reset YPbPr video input 1-ch, Resolution: 1920×1080I /60Hz, 1920×1080I / 50Hz,1920×1080P / 25Hz, 1920×1080P / 30Hz,
2. Audio in 1280×720P /60Hz, 1280×720P / 50Hz
3. Line in Audio compression G.711
4. Audio out Audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
5. LAN (10 M/100 M/1000 Mbps self-adaptive UTP Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video/Audio output
ethernet interface) Audio output 1-ch, RCA (Linear, 1 kΩ)
6. RS-232 serial interface 1920×1080 / 1600×1200 / 1280×1024 / 1280×720 / 1024×768 / 704×576 / 352×288
7. RS-485 serial interface, alarm in, alarm out Encoding resolution (depending on the type of video input interface connected)
8. 12 VDC power input 1 / 16 ~ 25 / 30 / 50 /60 fps
9. GND Frame rate 32 Kbps ~ 16 Mbps
Video bit rate 64 Kbps
Audio bit rate Support
Dual stream Video, Video & Audio
Stream type
Network protocols TCP / IP, UDP, IPv4, IPv6; HTTP, RTP, RTSP, NFS, ISCSI, DHCP, NTP, SMTP, SNMPv1, SNMPv2c,
SNMPv3, UPNP, SADP, PPPoE, DNS, FTP; IP Server, Dyndns, PeanutHull, NO-IP; PSIA.
Protocols Supported
8 network disks (NAS / IP SAN)
Network disk Up to 2TB capacity for each disk
Network Disk
Capacity 1, 10 M / 100 M / 1000 Mbps Ethernet interface
External interface 1, RS-485, 1 RS-232
Network interface 2
Serial interface 1
Alarm in
Alarm out 12 VDC
General ≤ 13W
Power supply -10°C ~ +55°C
Power Consumption 10% ~ 90%
Working temperature 200 × 123 × 39 mm
Working humidity ≤ 1.5 kg
Dimensions (W × D × H)
Weight
192 www.hikvision.com
