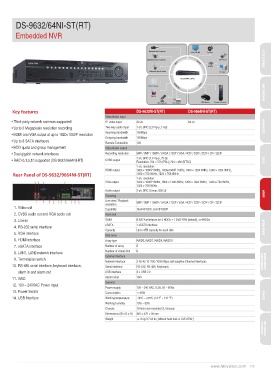

Page 175 - Catalog Hikvision 2014
P. 175
9632/64NI-ST(RT)
Embedded NVR
Network Box Cameras VGA / HDMI Speaker PTZ DOME
Network Dome Cameras DS-9600NI-ST(RT)
ACCESSIES INPUT OUTPUT Cell Phone
Network Speed Dome PC Client
Router
Door Contact
control NETWORK
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-9632NI-ST(RT) DS-9664NI-ST(RT)
• Third-party network cameras supported Video/Audio input 32-ch 64-ch ANALOG
• Up to 5 Megapixels resolution recording IP video input 1-ch, BNC (2.0 Vp-p, 1 kΩ)
• HDMI and VGA output at up to 1920×1080P resolution Two-way audio input 160Mbps
• Up to 8 SATA interfaces Incoming bandwidth 160Mbps
• HDD quota and group management Outgoing bandwidth 128
• Dual gigabit network interfaces Remote Connection
• RAID 0,1,5,10 supported (DS-9632/9664NI-RT) Video/Audio output 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF DVR
Recording resolution
Rear Panel of DS-9632/9664NI-ST(RT) 1-ch, BNC (1.0 Vp-p, 75 Ω) NVR
CVBS output Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
1. Video out 1-ch, resolution:
2. CVBS audio out and VGA audio out HDMI output 1920 × 1080P /60Hz, 1920×1080P / 50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz,
3. LIne in 1280 × 720 /60Hz, 1024 × 768 /60Hz
4. RS-232 serial interface VGA output 1-ch, resolution:
5. VGA interface 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
6. HDMI interface Audio output 1024 × 768 /60Hz
7. eSATA interface Decoding 2-ch, BNC (Linear, 600 Ω)
8. LAN1, LAN2 network interface Live view / Playback
9. Termination switch resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF ATM DVR
10. RS-485 serial interface, keyboard interface, Capability 16-ch@720P, 8-ch@1080P
Hard disk ENCODER
alarm in and alarm out SATA 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs DECODER
11. GND eSATA 1 eSATA interface
12. 100 ~ 240VAC Power Input Capacity Up to 4TB capacity for each disk CARD
13. Power Switch Disk array
14. USB Interface Array type RAID0, RAID1, RAID5, RAID10
Number of array 8
Number of virtual disk 8
External interface
Network interface 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial interface RS-232; RS-485; Keyboard;
USB interface 3 × USB 2.0
Alarm in/out 16/4
General
Power supply 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz
Consumption ≤45W
Working temperature -10°C ~ +55°C (14 °F ~ 131 °F)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 2U chassis
Dimensions (W x D x H) 445 × 470 × 90 mm
Weight ≤ 8 kg /17.64 lb ( without hard disk or DVD-R/W )
NETWORK
STORAGE
www.hikvision.com 175
