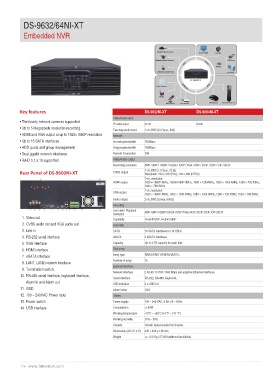

Page 174 - Catalog Hikvision 2014
P. 174
9632/64NI-XT
Embedded NVR
Network Box Cameras ACCESSIES INPUT VGA / HDMIOUTPUTSpeakerCell Phone
Network Dome Cameras DS-9600NI-XT Router PC Client
Network Speed Dome control
Door Contact
Alarm USB Device USB Mouse Remote Control
Microphone
Key features DS-9632NI-XT DS-9664NI-XT
• Third-party network cameras supported Video/Audio input 32-ch 64-ch
• Up to 5 Megapixels resolution recording IP video input 1-ch, BNC (2.0 Vp-p, 1kΩ)
• HDMI and VGA output at up to 1920×1080P resolution Two-way audio input
• Up to 16 SATA interfaces Network 160Mbps
• HDD quota and group management Incoming bandwidth 160Mbps
• Dual gigabit network interfaces Outgoing bandwidth 128
• RAID 0,1,5,10 supported Remote Connection
Video/Audio output 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Rear Panel of DS-9600NI-XT Recording resolution
1-ch, BNC (1.0 Vp-p, 75 Ω)
1. Video out CVBS output Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
2. CVBS audio out and VGA audio out 1-ch, resolution:
3. Line in HDMI output 1920 × 1080P /60Hz, 1920×1080P /50Hz, 1600 × 1200/60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
4. RS-232 serial interface 1024 × 768 /60Hz
5. VGA interface VGA output 1-ch, resolution:
6. HDMI interface 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
7. eSATA interface Audio output
8. LAN1, LAN2 network interface Decoding 2-ch, BNC (Linear, 600Ω)
9. Termination switch Live view / Playback
10. RS-485 serial interface, keyboard interface, resolution 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Capability 16-ch@720P, 8-ch@1080P
Alarm in and Alarm out Hard disk
11. GND SATA 16 SATA interfaces for 16 HDDs
12. 100 ~ 240VAC Power input eSATA 2 eSATA interfaces
13. Power switch Capacity Up to 4 TB capacity for each disk
14. USB interface Disk array
Array type RAID0,RAID1,RAID5,RAID10,
Number of array 16
External interface
Network interface 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial interface RS-232; RS-485; Keyboard;
USB interface 3 × USB 2.0
Alarm in/out 16/4
Others
Power supply 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz
Consumption ≤45W
Working temperature -10°C ~ +55°C (14 °F ~ 131 °F)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 3U chassis
Dimensions (W x D x H) 445 × 496 × 146 mm
Weight ≤ 12.5 Kg / 27.56 lb(without hard disks)
174 www.hikvision.com
