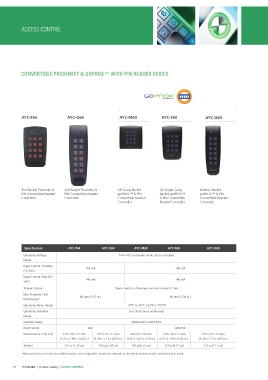

Page 29 - Rosslare Acces Control 2014
P. 29
ESS CONTROL
CONVERTIBLE PROXIMITY & GOPROX™ WITH PIN READER SERIES
AYC-F64 AYC-G64 AYC-M60 AYC-F60 AYC-G60
3x4 Backlit Proximity & 2x6 Backlit Proximity & UK Gang Backlit US Single Gang Mullion Backlit
PIN Convertible Reader/ PIN Convertible Reader/ goPROX™ & PIN Backlit goPROX™ goPROX™ & PIN
Controller Controller Convertible Reader/ & PIN Convertible Convertible Reader/
Controller Reader/Controller Controller
Specification AYC-F64 AYC-G64 AYC-M60 AYC-F60 AYC-G60
Operating Voltage 5–16 VDC (in Reader mode, from controller) 137 x 44 x 21 mm
Range (5.39 x 1.73 x 0.83 in.)
Input Current: Standby 105 mA 100 mA
(12 VDC) 175 g (6.17 oz)
Input Current: Max (16 140 mA 140 mA
VDC) 80 mm (3.15 in.)
Open collector, active low, max sink current 32 mA
Tamper Output 60 mm (2.36 in.)
Max Proximity Card
Read Range* -30°C to 65°C (-22°F to 150°F)
Operating Temp. Range 0 to 95% (non-condensing)
Operating Humidity
Range Waterproof, meets IP65
Outdoor Usage
Read Format ASK ASK\FSK
Dimensions (H x W x D)
120 x 76 x 21 mm 137 x 44 x 21 mm 93 x 93 x 18 mm 120 x 76 x 21 mm
Weight (4.72 x 2.99 x 0.83 in.) (5.39 x 1.73 x 0.83 in.)
(3.63 x 3.63 x 0.70 in.) (4.72 x 2.99 x 0.83 in.)
215 g (7.58 oz) 160 g (5.64 oz) 185 g (6.52 oz) 230 g (8.11 oz)
*Measured using a Rosslare clamshell proximity card or equivalent. Range also depends on the electrical environment and proximity to metal.
