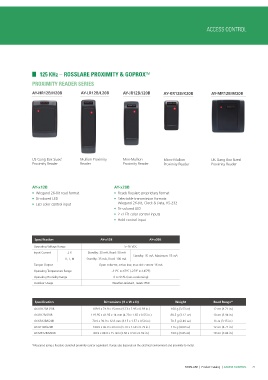

Page 28 - Rosslare Acces Control 2014
P. 28
ACCESS CONTROL
125 KHz – ROSSLARE PROXIMITY & GOPROX™
PROXIMITY READER SERIES
AY-HR12B/H20B AY-LR12B/L20B AY-JR12B/J20B AY-KR12B/K20B AY-MR12B/M20B
US Gang Box Sized Mullion Proximity Mini-Mullion Micro-Mullion UK Gang Box Sized
Proximity Reader Reader Proximity Reader Proximity Reader Proximity Reader
AY-x12B AY-x20B
• Wiegand 26-Bit read format • Reads Rosslare proprietary format
• Bi-colored LED • Selectable transmission formats:
• LED color control input
Wiegand 26-Bit, Clock & Data, RS-232
• Tri-colored LED
• 2 x LED color control inputs
• Hold control input
Specification AY-x12B AY-x20B
Operating Voltage Range 5–16 VDC
Input Current J, K Standby: 35 mA, Read: 50 mA Standby: 35 mA, Maximum: 55 mA
Standby: 35 mA, Read: 100 mA
H, L, M
Tamper Output Open collector, active low, max sink current 16 mA
Operating Temperature Range -31°C to 63°C (-25°F to 145°F)
Operating Humidity Range 0 to 95% (non-condensing)
Outdoor Usage Weather-resistant, meets IP68
Specification Dimensions (H x W x D) Weight Read Range*
AY-HR12B/H20B 109.9 x 74.9 x 15 mm (4.33 x 2.95 x 0.59 in.) 100 g (3.53 oz) 12 cm (4.71 in.)
AY-JR12B/J20B 119.95 x 41.95 x 14 mm (4.70 x 1.65 x 0.55 in.) 88.5 g (3.12 oz) 10 cm (3.94 in.)
AY-KR12B/K20B 79.9 x 39.9 x 12.8 mm (3.15 x 1.57 x 0.50 in.) 70.5 g (2.49 oz) 8 cm (3.15 in.)
AY-LR12B/L20B 144.9 x 42.9 x 20 mm (5.70 x 1.69 x 0.79 in.) 116 g (4.09 oz) 12 cm (4.71 in.)
AY-MR12B/M20B 88.9 x 88.9 x 15 mm (3.50 x 3.50 x 0.59 in.) 109 g (3.85 oz) 10 cm (3.94 in.)
*Measured using a Rosslare clamshell proximity card or equivalent. Range also depends on the electrical environment and proximity to metal.
ROSSLARE | Product Catalog | ACCESS CONTROL 27
