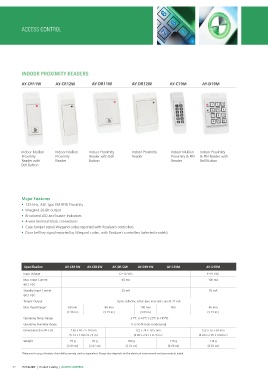

INDOOR PROXIMITY READERS
AY-CR11W AY-CR12W AY-DR11W AY-DR12W AY-C19M AY-D19M
Indoor Mullion Indoor Mullion Indoor Proximity Indoor Proximity Indoor Mullion Indoor Proximity
Proximity Proximity Reader with Bell Reader Proximity & PIN & PIN Reader with
Reader with Reader Button Reader Bell Button
Bell Button
Major Features
• 125 kHz, ASK type EM RFID Proximity
• Wiegand 26-Bit output
• Bi-colored LED and buzzer indicators
• 4-wire terminal-block connections
• Case tamper signal Wiegand codes reported with Rosslare’s controllers
• Door bell key signal reported by Wiegand codes, with Rosslare’s controllers (selected models)
Specification AY-CR11W AY-CR12W AY-DR12W AY-DR11W AY-C19M AY-D19M
Input Voltage 5–16 VDC
Max. Input Current 12–16 VDC 100 mA
@12 VDC 60 mA
Standby Input Current 55 mA
@12 VDC 25 mA
Tamper Output 80 mm
Max. Read Range* Open collector, active low, max sink current 32 mA (3.15 in.)
Operating Temp. Range 60 mm 80 mm 100 mm N/A 122 x 75 x 24 mm
Operating Humidity Range (2.36 in.) (3.15 in.) (3.94 in.) (4.80 x 2.95 x 0.94 in.)
Dimensions (H x W x D)
-31°C to 63°C (-25°F to 145°F) 114 g
Weight (4.02 oz)
0 to 95% (non-condensing)
130 x 41.7 x 19 mm 122 x 74 x 18.5 mm
(5.12 x 1.64 x 0.75 in.) (4.80 x 2.91 x 0.73 in.)
75 g 70 g 100 g 115 g
(2.65 oz) (2.47 oz) (3.53 oz) (4.06 oz)
*Measured using a Rosslare clamshell proximity card or equivalent. Range also depends on the electrical environment and proximity to metal.
