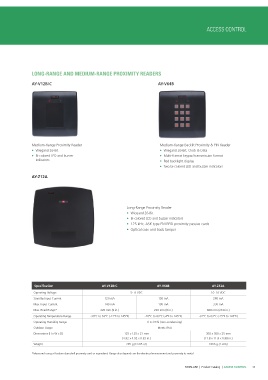

Page 34 - Rosslare Acces Control 2014
P. 34
ACCESS CONTROL
LONG-RANGE AND MEDIUM-RANGE PROXIMITY READERS
AY-V12B/C AY-V64B
Medium-Range Proximity Reader Medium-Range Backlit Proximity & PIN Reader
• Wiegand 26-Bit • Wiegand 26-Bit, Clock & Data
• Bi-colored LED and buzzer • Multi-format keypad transmission format
• Red backlight display
indicators • Two bi-colored LED and buzzer indicators
AY-Z12A Long-Range Proximity Reader
• Wiegand 26-Bit
• Bi-colored LED and buzzer indicators
• 125 kHz, ASK type EM RFID proximity passive cards
• Optical case and back tamper
Specification AY-V12B/C AY-V64B AY-Z12A
Operating Voltage 10–16 VDC
Standby Input Current 5-–6 VDC
Max. Input Current 280 mA
Max. Read Range* 120 mA 150 mA 330 mA
Operating Temperature Range 600 mm (23.6 in.)
Operating Humidity Range 140 mA 180 mA -32°C to 63°C (-25°F to 145°F)
Outdoor Usage
Dimensions (H x W x D) 220 mm (9 in.) 220 mm (9 in.) 300 x 300 x 25 mm
(11.8 x 11.8 x 0.98 in.)
Weight -30°C to 63°C (-22°F to 145°F) -20°C to 63°C (-4°F to 145°F)
1066 g (2.4 lb)
0 to 95% (non-condensing)
Meets IP54
125 x 125 x 21 mm
(4.92 x 4.92 x 0.83 in.)
285 g (10.05 oz)
*Measured using a Rosslare clamshell proximity card or equivalent. Range also depends on the electrical environment and proximity to metal.
ROSSLARE | Product Catalog | ACCESS CONTROL 33
