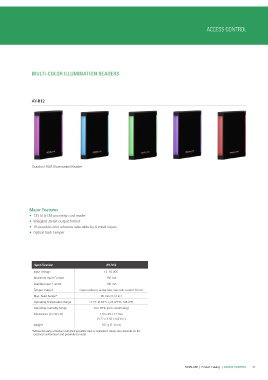

ACCESS CONTROL
MULTI-COLOR ILLUMINATION READERS
AY-R12
Outdoor RGB Illuminated Reader
Major Features
• 125 kHz EM proximity card reader
• Wiegand 26-Bit output format
• 16 possible color schemes selectable by 4 wired inputs
• Optical back tamper
Specification AY-R12
Input Voltage 12–16 VDC
Maximum Input Current 150 mA
Standby Input Current 100 mA
Tamper Output
Max. Read Range* Open collector, active low, max sink current 16 mA
Operating Temperature Range 80 mm (3.12 in.)
Operating Humidity Range
Dimensions (H x W x D) -31°C to 63°C (-23.8°F to 145.4°F)
0 to 95% (non-condensing)
Weight 120 x 89 x 21 mm
(4.72 x 3.50 x 0.83 in.)
202 g (7.10 oz)
*Measured using a Rosslare clamshell proximity card or equivalent. Range also depends on the
electrical environment and proximity to metal.
ROSSLARE | Product Catalog | ACCESS CONTROL 31
