ESS CONTROL

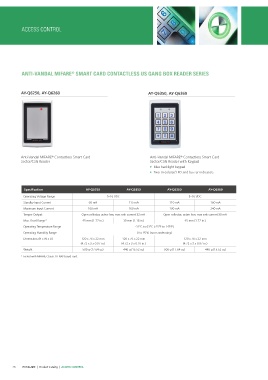

ANTI-VANDAL MIFARE® SMART CARD CONTACTLESS US GANG BOX READER SERIES

AY-Q6250, AY-Q6260 AY-Q6350, AY-Q6360

Anti-Vandal MIFARE® Contactless Smart Card Anti-Vandal MIFARE® Contactless Smart Card
Sector/CSN Reader Sector/CSN Reader with Keypad

• Blue backlight keypad

• Two tri-colored LED and buzzer indicators

Specification AY-Q6250 AY-Q6350 AY-Q6260 AY-Q6360

Operating Voltage Range 5–16 VDC 5–16 VDC
Standby Input Current
Maximum Input Current 60 mA 115 mA 110 mA 160 mA
Tamper Output
Max. Read Range* 100 mA 160 mA 190 mA 240 mA
Operating Temperature Range
Operating Humidity Range Open collector, active low, max sink current 32 mA Open collector, active low, max sink current 30 mA
Dimensions (H x W x D)
45 mm (1.77 in.) 30 mm (1.18 in.) 45 mm (1.77 in.)
Weight
-31°C to 63°C (-25°F to 145°F)

0 to 95% (non-condensing)

120 x 76 x 22 mm 120 x 76 x 22 mm 120 x 76 x 22 mm
(4.72 x 3 x 0.97 in.) (4.72 x 3 x 0.97 in.) (4.72 x 3 x 0.97 in.)

500 g (17.64 oz) 440 g (15.52 oz) 500 g (17.64 oz) 440 g (15.52 oz)

* Tested with MIFARE Classic 1K NXP based card.
