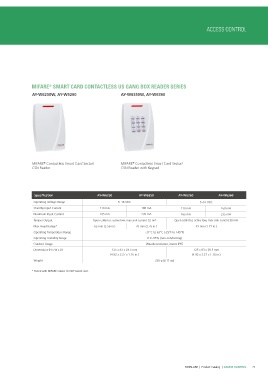

Page 26 - Rosslare Acces Control 2014

ACCESS CONTROL

MIFARE® SMART CARD CONTACTLESS US GANG BOX READER SERIES

AY-W6250W, AY-W6260 AY-W6350W, AY-W6360

MIFARE® Contactless Smart Card Sector/ MIFARE® Contactless Smart Card Sector/
CSN Reader CSN Reader with Keypad

Specification AY-W6250 AY-W6350 AY-W6260 AY-W6360
Operating Voltage Range
Standby Input Current 5–16 VDC 5–16 VDC
Maximum Input Current
Tamper Output 110 mA 180 mA 110 mA 160 mA
Max. Read Range*
Operating Temperature Range 165 mA 235 mA 165 mA 235 mA
Operating Humidity Range
Outdoor Usage Open collector, active low, max sink current 32 mA Open collector, active low, max sink current 30 mA
Dimensions (H x W x D)
65 mm (2.56 in.) 70 mm (2.76 in.) 45 mm (1.77 in.)
Weight
-31°C to 63°C (-25°F to 145°F)

0 to 95% (non-condensing)

Weather-resistant, meets IP65

125 x 83 x 29.5 mm 125 x 83 x 29.5 mm
(4.92 x 3.27 x 1.16 in.) (4.92 x 3.27 x 1.16 in.)

230 g (8.11 oz)

* Tested with MIFARE Classic 1K NXP based card.
