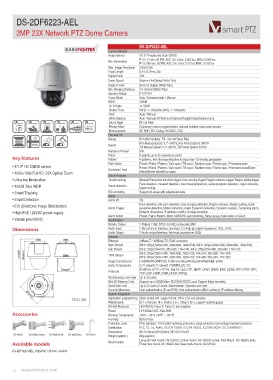

P. 12
2DF6223-AEL
2MP 23X Network PTZ Dome Camera
DS-2DF6223-AEL
Camera Module 1/1.9’’ Progressive Scan CMOS
Image Sensor F1.5, 1/1 sec, 50 IRE, AGC On: Color: 0.002 lux, B/W: 0.0002 lux
F1.5,1/30 sec, 50 IRE, AGC On: Color: 0.02 lux, B/W : 0.002 lux
Min. Illumination
Max. Image Resolution 1920×1080
Focal Length 5.9-135.7mm, 23x
Digital Zoom 16X
Zoom Speed Approx.4.4s(Optical Wide-Tele)
Angle of View 59.8-3.0 degree (Wide-Tele)
Min. Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.5~F3.4
Focus Mode Auto / Semiautomatic / Manual
WDR 120dB
S / N Ratio ≥ 55dB
Shutter Time 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
CODEC DEFOG Privacy Mask 24 privacy masks programmable; optional multiple colors and mosaics
WDR Enhancement 3D DNR, EIS, Defog, HLC/BLC, SVC
Pan and Tilt Pan:360° endless; Tilt: -20°~90°(Auto Flip)
Range
Intelligent Speed Pan Manual Speed: 0.1°~300°/s, Pan Preset Speed: 540°/s
Positioning Tilt Manual Speed: 0.1°~240°/s, Tilt Preset Speed: 400°/s
Number of Preset 300
Key features Patrol 8 patrols, up to 32 presets per patrol
• 1/1.9” HD CMOS sensor Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
• 1920×1080 Full HD, 23X Optical Zoom Park Action Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
• Ultra-low illumination Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
• 120dB True WDR Scheduled Task reboot/Dome adjust/Aux output
• Smart Tracking
• Smart Detection Smart Features
• EIS (Electronic Image Stabilization)
• High-PoE / 24VAC power supply Smart tracking Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
• Vandal proof(IK10)
Smart detection Face detection, intrusion detection, line crossing detection, audio exception detection, region entrance,
Dimensions region exiting
ROI encoding Support 24 areas with adjustable levels
Alarm 7/2
Alarm I/O Face detection, Intrusion detection, Line crossing detection, Region entrance, Region exiting, Audio
exception detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm,
Alarm Trigger Network disconnect, IP address conflict, Storage exception
Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client
Alarm Action
Input/Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio Input 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface, line level, impedance: 600Ω
Network 10Base-T / 100Base-TX, RJ45 connector
Ethernet
Main Stream 50Hz: 25fps(1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
Sub Stream 50Hz: 25fps(704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
Third Stream 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
Image Compression H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
Simultaneous Live View TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Up to 20 users
Mini SD Memory Card Support up to 64GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application programming Open-ended API, support Onvif, PSIA, CGI and Genetec
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Accessories Power Hi-PoE&24 VAC, Max.60W
Working Temperature -40°C ~ 65°C (-40°F ~ 149°F)
Humidity 90% or less
DS-1602ZJ DS-1602ZJ-Corner DS-1602ZJ-Pole DS-1602ZJ-Box DS-1619ZJ Protection Level IP66 standard, TVS 6,000V lightning protection, surge protection and voltage transient protection
Certification
Dimensions FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Φ178.3(mm)×331.0(mm) (Φ7.02”×13.03”)
Weight (approx.) 8kg (approx.)
Available models Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
DS-2DF6223-AEL, High-PoE / 24VAC, outdoor
