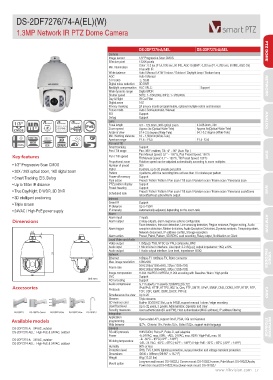

Page 17 - Hikvision Products Catalog 2015
P. 17
2DF7276/74-A(EL)(W)
1.3MP Network IR PTZ Dome Camera
DS-2DF7276-A/AEL DS-2DF7274-A/AEL PTZ DOME
Camera 1/3" Progressive Scan CMOS
Image sensor 1320K pixels
Effective pixel Color : 0.3 lux (F1.4,1/30 sec, 50 IRE, AGC On)B/W : 0.02 lux (F1.4,1/30 sec, 50 IRE, AGC On)
Min. Illumination 0 lux with IR
White balance Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp
AGC Auto / Manual
S / N ratio ≥ 55dB Support NETWORK
Digital noise reduction 3D DNR
Backlight compensation HLC / BLC:
Wide dynamic range Digital WDR
Shutter speed 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day & Night IR Cut Filter
Digital zoom 16X
Privacy masking 24 privacy masks programmable, optional multiple colors and mosaics
Focus mode Auto / Semiautomatic / Manual
1/3” DEFOG PoE EIS Support 4.3-86.0mm, 20x ANALOG
Defog Support Approx.5s(Optical Wide-Tele)
CMOS CODEC Lens 4.3 ~ 129.0mm, 30X optical zoom 54.1-3.2 degree (Wide-Tele)
Focal length Approx 3s (Optical Wide-Tele) F1.4- F2.6
DIGITAL Zoom speed 57.4-2.8 degree (Wide-Tele)
WDR Angle of view 10 ~ 1,500mm(Wide-Tele)
Min. Working distance F1.6 ~ F5.0
Aperture range
Intelligent ICR Pan and Tilt
Positioning Smart tracking Support
Pan / Tilt range Pan: 360° endless; Tilt: -2° ~ 90° (Auto Flip )
Key features Pan / Tiltr speed Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160°/s DVR
Proportional zoom Tilt Manual Speed: 0.1° ~ 120°/s, Tilt Preset Speed: 120°/s
• 1/3’’ Progressive Scan CMOS Number of preset Rotation speed can be adjusted automatically according to zoom multiples
• 30X / 20X optical zoom, 16X digital zoom Patrol 300
• Smart Tracking, EIS, Defog 8 patrols, up to 32 presets per patrol
• Up to 150m IR distance Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
• True Day/Night, D WDR, 3D DNR Power-off memory Support
• 3D intelligent positioning Park action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
• Triple stream PTZ position display Support
• 24VAC / High-PoE power supply Preset freezing Support NVR
Scheduled task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
Dimensions Infrared reboot/Self-test action/Alarm output ATM DVR
Smart IR Support
G121 IR distance Up to 150m
IR intensity Automatically adjusted, depending on the zoom ratio
18 Alarm 7 inputs
399 Alarm input 2 relay outputs, alarm response actions configurable
Alarm output Face detection, Intrusion detection, Line crossing detection, Region entrance, Region exiting, Audio
exception detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm,
Alarm trigger Network disconnect, IP address conflict, Storage exception
Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client
Alarm action
Local Video and Audio
Video output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC VIDEO
Audio input 1 Mic in/Line in interface. Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% ENCODER
Audio output 1 Audio output interface. Line level, impedance: 600Ω
Network
245 Unit:mm Ethernet 10Base-T / 100Base-TX, RJ45 connector
Max. image resolution 1280×960
Accessories Frame rate 50Hz:25fps(1280×960), 25fps (1280×720)
Image compression 60Hz:30fps(1280×960), 30fps (1280×720)
SVC H.264 / MJPEG / MPEG4, H.264 encoding with Baseline / Main / High profile
ROI encoding Support
Audio compression Support
Protocols G.711ulaw/G.711alaw/G.726/MP2L2/G.722 CARD
Simultaneous live view IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
DS-1602ZJ DS-1602ZJ-Corner DS-1602ZJ-Pole DS-1602ZJ-Box DS-1619ZJ Streams TCP, UDP, IGMP, ICMP, DHCP, PPPoE
SD memory card Up to 20
Available models User/Host level Triple streams NETWORK
Security measures Built-in SD/SDHC Slot, up to 64GB, support manual / alarm / edge recording STORAGE
DS-2DF7276-A: 24VAC, outdoor Integration Up to 32 users, 3 Levels: Administrator, Operator and User
DS-2DF7276-AEL: High-PoE & 24VAC, outdoor Application User authentication(ID and PW); Host authentication(MAC address); IP address filtering
DS-2DF7274-A: 24VAC, outdoor programming
DS-2DF7274-AEL: High-PoE & 24VAC, outdoor Web browser Open-ended API, support Onvif, PSIA, CGI and Genetec
General IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language
RS-485 protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power -A: 24VAC, max. 50W; -AEL: 24VAC, max. 60W / High-PoE, max. 50
Working temperature --A: -30°C ~ 65°C(-22°F ~ 149°F)
Humidity -AEL: 24 VAC: -40°C ~ 65°C (-40°F ~ 149°F) / High-PoE: -30°C ~ 65°C (-22°F ~ 149°F)
Protection level 90% or less
Dimensions IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
Weight Φ245 × 399mm (Φ9.65” × 15.71”)
6Kg (13.22 Ibs)
Mount option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
www.hikvision.com 17
