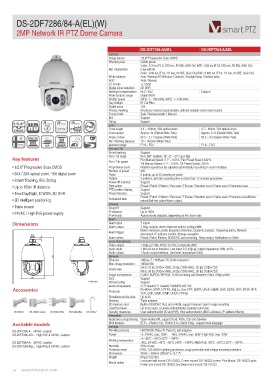

2DF7286/84-A(EL)(W)
2MP Network IR PTZ Dome Camera
DS-2DF7286-A/AEL DS-2DF7284-A/AEL
Camera 1/2.8’’ Progressive Scan CMOS
Image sensor 2230K pixels
Effective pixel
Min. Illumination Color : 0.3 lux (F1.6,1/30 sec, 50 IRE, AGC On) B/W : 0.02 lux (F1.6,1/30 sec, 50 IRE, AGC On)
White balance 0 lux with IR
AGC Color : 0.02 lux (F1.6, 1/1 sec, 50 IRE, AGC On) B/W : 0.002 lux (F1.6, 1/1 sec, 50 IRE, AGC On)
S / N ratio Auto / Manual /ATW/Indoor / Outdoor / Daylight lamp / Sodium lamp
Digital noise reduction Auto / Manual
Backlight compensation ≥ 55dB
Wide dynamic range 3D DNR
HLC / BLC Support
Digital WDR
Shutter speed 50Hz: 1 ~ 1/30,000s, 60Hz: 1 ~1/30,000s
Day & Night IR Cut Filter
Digital zoom 16X
Privacy masking 24 privacy masks programmable, optional multiple colors and mosaics
1/2.8” Focus mode Auto / Semiautomatic / Manual
EIS Support
CMOS Defog Support
Lens
PoE Focal length 4.3 ~ 129mm, 30X optical zoom 4.7 ~ 94mm, 20X optical zoom
DEFOG
CODEC
Zoom speed Approx. 3s (Optical Wide-Tele) Approx. 2.7s (Optical Wide-Tele)
DIGITAL Angle of view 65.5 ~ 2.11 degree (Wide-Tele) 58.3 ~ 3.2 degree (Wide-Tele)
WDR
Min. Working distance 10 ~ 1500mm(Wide-Tele)
Aperture range F1.6 ~ F5.0 F1.6 ~ F3.5
Intelligent ICR
Positioning
Pan and Tilt Support
Smart tracking
Pan / Tilt range Pan: 360° endless; Tilt: -2° ~ 90° (auto flip)
Key features Pan / Tiltr speed Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 240°/s
• 1/2.8’’ Progressive Scan CMOS Proportional zoom Tilt Manual Speed: 0.1° ~ 120°/s, Tilt Preset Speed: 200°/s
• 30X / 20X optical zoom, 16X digital zoom Number of preset Rotation speed can be adjusted automatically according to zoom multiples
• Smart Tracking, EIS, Defog Patrol 300
• Up to 150m IR distance Pattern 8 patrols, up to 32 presets per patrol
• True Day/Night, D WDR, 3D DNR Power-off memory 4 patterns, with the recording time not less than 10 minutes per pattern
• 3D intelligent positioning Park action Support
• Triple stream PTZ position display Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
• 24VAC / High-PoE power supply Preset freezing Support
Scheduled task Support
Dimensions Infrared Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
Smart IR reboot/Self-test action/Alarm output
G121 Support
IR distance Up to 150m
IR intensity Automatically adjusted, depending on the zoom ratio
Alarm 7 inputs
Alarm input
Alarm output 2 relay outputs, alarm response actions configurable
18 Alarm trigger Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm, Network
399 Alarm action disconnect, IP address conflict, Storage exception
Local Video&Audio Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client
245 Video output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio input 1 Mic in/Line in interface. Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Accessories Audio output 1 Audio output interface. Line level, impedance: 600Ω
Network 10Base-T / 100Base-TX, RJ45 connector
Ethernet 1920×1080
Max. image resolution 50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)
Frame rate 60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720)
Image compression H.264 / MJPEG / MPEG4, H.264 encoding with Baseline / Main / High profile
SVC Support
ROI encoding Support
Unit:mm Audio compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
Simultaneous live view TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Streams Up to 20
SD memory card Triple streams
Built-in SD/SDHC Slot, up to 64GB, support manual / alarm / edge recording
User/Host level Up to 32 users, 3 Levels: Administrator, Operator and User
DS-1602ZJ DS-1602ZJ-Corner DS-1602ZJ-Pole DS-1602ZJ-Box DS-1619ZJ Security measures User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Integration
Application programming Open-ended API, support Onvif, PSIA, CGI and Genetec
Web browser IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language
Available models General
RS-485 protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
DS-2DF7286-A: 24VAC, outdoor
DS-2DF7286-AEL: High-PoE & 24VAC, outdoor Power -A: 24VAC, max. 50W ; -AEL: 24VAC, max. 60W / High-PoE, max. 50W
DS-2DF7284-A: 24VAC, outdoor Working temperature -A: -30°C ~ 65°C(-22°F ~ 149°F)
DS-2DF7284-AEL: High-PoE & 24VAC, outdoor Humidity -AEL: 24 VAC: -40°C ~ 65°C (-40°F ~ 149°F) / High-PoE: -30°C ~ 65°C (-22°F ~ 149°F)
Protection level 90% or less
Dimensions IP66, TVS 4000V lightning protection, surge protection and voltage transient protection
Weight Φ245 × 399mm (Φ9.65” × 15.71”)
Mount option 6Kg (13.22 Ibs)
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
