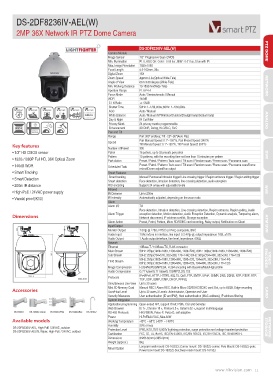

2DF8236IV-AEL(W)
2MP 36X Network IR PTZ Dome Camera
DS-2DF8236IV-AEL(W) PTZ DOME
Camera Module
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination F1.6, AGC On: Color : 0.05 lux , B/W : 0.01 lux, 0 lux with IR
Max. Image Resolution 1920×1080
Focal Length 4.5-162mm, 36x
Digital Zoom 16X NETWORK
Zoom Speed Approx.3.3s(Optical Wide-Tele)
Angle of View 60.6-3.68 degree (Wide-Tele)
Min. Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.6-F4.4
Focus Mode Auto / Semiautomatic / Manual
WDR 140dB
S / N Ratio ≥ 55dB
Shutter Time 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
AGC Auto / Manual ANALOG
CODEC DEFOG White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 24 privacy masks programmable
WDR Enhancement 3D DNR, Defog, HLC/BLC, SVC
Intelligent Pan and Tilt
Positioning
Range Pan:360° endless; Tilt: -20°~90°(Auto Flip)
Key features Speed Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
• 1/3” HD CMOS sensor Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
• 1920×1080P Full HD, 36X Optical Zoom
• 140dB WDR Number of Preset 300
• Smart Tracking
• Smart Detection Patrol 16 patrols, up to 32 presets per patrol DVR
• 200m IR distance
• High-PoE / 24VAC power supply Pattern 10 patterns, with the recording time not less than 10 minutes per pattern
• Vandal proof(IK10)
Park Action Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
Scheduled Task Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
reboot/Dome adjust/Aux output
Smart Features
Smart tracking Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Smart detection Face detection, intrusion detection, line crossing detection ,audio exception
ROI encoding Support 24 areas with adjustable levels NVR
Infrared
IR Distance Up to 200m
IR Intensity Automatically adjusted, depending on the zoom ratio
Alarm
Alarm I/O 7/2
Dimensions Alarm Trigger Face detection, Intrusion detection, Line crossing detection, Region entrance, Region exiting, Audio ATM DVR
exception detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm,
Network disconnect, IP address conflict, Storage exception
Alarm Action Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client
Input/Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio Input 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface, line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector VIDEO
ENCODER
Main Stream 50Hz: 25fps(1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
Sub Stream 50Hz: 25fps(704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
Third Stream 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
Image Compression H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20 users
Accessories Mini SD Memory Card Manual REC / Alarm REC. Built-in Micro SD/SDHC/SDXC card Slot, up to 64GB. Edge recording CARD
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application programming Open-ended API, support Onvif, PSIA, CGI and Genetec
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
DS-1602ZJ DS-1602ZJ-Corner DS-1602ZJ-Pole DS-1602ZJ-Box DS-1619ZJ RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Available models Power Hi-PoE&24 VAC, Max.60W NETWORK
STORAGE
DS-2DF8236IV-AEL, High-PoE / 24VAC, outdoor Working Temperature -40°C ~ 65°C (-40°F ~ 149°F)
DS-2DF8236IV-AELW, Wiper, High-PoE / 24VAC, outdoor
Humidity 90% or less
Protection Level IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions Φ266.6(mm)×365.2(mm)
Weight (approx.) 8kg
Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
