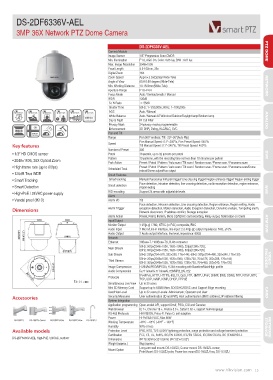

P. 15
2DF6336V-AEL
3MP 36X Network PTZ Dome Camera
DS-2DF6336V-AEL PTZ DOME
Camera Module
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux
Max. Image Resolution 2048×1536
Focal Length 4.5-162mm, 36x
Digital Zoom 16X
Zoom Speed Approx.3.3s(Optical Wide-Tele) NETWORK
Angle of View 60.6-3.68 degree (Wide-Tele)
Min. Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.6~F4.4
Focus Mode Auto / Semiautomatic / Manual
WDR 120dB
S / N Ratio ≥ 55dB
Shutter Time 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
AGC Auto / Manual ANALOG
CODEC DEFOG White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 24 privacy masks programmable
WDR Enhancement 3D DNR, Defog, HLC/BLC, SVC
Intelligent Pan and Tilt
Positioning
Range Pan:360° endless; Tilt: -20°~90°(Auto Flip)
Key features Speed Pan Manual Speed: 0.1°~300°/s, Pan Preset Speed: 540°/s
Tilt Manual Speed: 0.1°~240°/s, Tilt Preset Speed: 400°/s
• 1/3” HD CMOS sensor
• 2048×1536, 36X Optical Zoom Number of Preset 300 DVR
• High frame rate (up to 60fps)
• 120dB True WDR Patrol 16 patrols, up to 32 presets per patrol
• Smart Tracking
• Smart Detection Pattern 10 patterns, with the recording time not less than 10 minutes per pattern
• High-PoE / 24VAC power supply
• Vandal proof (IK10) Park Action Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
Dimensions Scheduled Task Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
reboot/Dome adjust/Aux output
Smart Features
Smart tracking Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
Smart detection Face detection, intrusion detection, line crossing detection, audio exception detection, region entrance, NVR
region exiting
ROI encoding Support 24 areas with adjustable levels
Alarm
Alarm I/O 7/2
Alarm Trigger Face detection, Intrusion detection, Line crossing detection, Region entrance, Region exiting, Audio
exception detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm,
Network disconnect, IP address conflict, Storage exception
Alarm Action Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client ATM DVR
Input/Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio Input 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface, line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Main Stream 50Hz: 50fps(2048×1536, 1920×1080), 25fps(1280×720); VIDEO
60Hz: 60fps(2048×1536, 1920×1080), 30fps(1280×720) ENCODER
Sub Stream 50Hz: 25fps(704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
Third Stream 50Hz: 25fps(2048×1536, 1920×1080, 1280×720, 704×576, 352×288, 176×144)
60Hz: 30fps(2048×1536, 1920×1080, 1280×720, 704×480, 352×240, 176×120)
Image Compression H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20 users
Mini SD Memory Card Support up to 64GB Micro SD/SDHC/SDXC card. Support Edge recording CARD
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Accessories Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application programming Open-ended API, support Onvif, PSIA, CGI and Genetec
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
DS-1602ZJ DS-1602ZJ-Corner DS-1602ZJ-Pole DS-1602ZJ-Box DS-1619ZJ Power Hi-PoE&24 VAC, Max.60W NETWORK
STORAGE
Working Temperature -40°C ~ 65°C (-40°F ~ 149°F)
Humidity 90% or less
Available models Protection Level IP66, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
DS-2DF6336V-AEL, High-PoE / 24VAC, outdoor Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions Φ178.3(mm)×331.0(mm) (Φ7.02”×13.03”)
Weight (approx.) 8kg (approx.)
Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; DS-1619ZJ
www.hikvision.com 15
