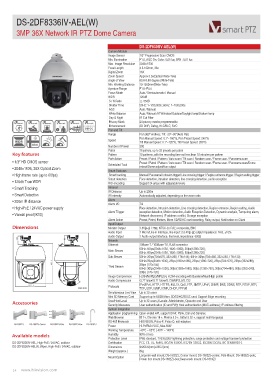

Page 14 - Hikvision Products Catalog 2015
P. 14
2DF8336IV-AEL(W)
3MP 36X Network IR PTZ Dome Camera
DS-2DF8336IV-AEL(W)
Camera Module
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux
Max. Image Resolution 2048×1536
Focal Length 4.5-162mm, 36x
Digital Zoom 16X
Zoom Speed Approx.3.3s(Optical Wide-Tele)
Angle of View 60.6-3.68 degree (Wide-Tele)
Min. Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.6~F4.4
Focus Mode Auto / Semiautomatic / Manual
WDR 120dB
S / N Ratio ≥ 55dB
Shutter Time 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 24 privacy masks programmable
CODEC DEFOG Enhancement 3D DNR, Defog, HLC/BLC, SVC
Pan and Tilt
Range Pan:360° endless; Tilt: -20°~90°(Auto Flip)
WDR Speed Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Intelligent
Positioning Number of Preset 300
Key features Patrol 16 patrols, up to 32 presets per patrol
• 1/3” HD CMOS sensor Pattern 10 patterns, with the recording time not less than 10 minutes per pattern
• 2048×1536, 36X Optical Zoom
• High frame rate (up to 60fps) Park Action Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
• 120db True WDR
• Smart Tracking Scheduled Task Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
• Smart Detection reboot/Dome adjust/Aux output
• 200m IR distance
• High-PoE / 24VAC power supply Smart Features
• Vandal proof(IK10)
Smart tracking Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Smart detection Face detection, intrusion detection, line crossing detection ,audio exception
ROI encoding Support 24 areas with adjustable levels
Infrared
IR Distance Up to 200m
IR Intensity Automatically adjusted, depending on the zoom ratio
Alarm
Alarm I/O 7/2
Face detection, Intrusion detection, Line crossing detection, Region entrance, Region exiting, Audio
Alarm Trigger exception detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm,
Network disconnect, IP address conflict, Storage exception
Alarm Action Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client
Dimensions Input/Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio Input 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface, line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Main Stream 50Hz: 50fps(2048×1536, 1920×1080), 25fps(1280×720);
60Hz: 60fps(2048×1536, 1920×1080), 30fps(1280×720)
Sub Stream 50Hz: 25fps(704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
50Hz:25fps(2048×1536), 25fps(1920×1080), 25fps (1280×720), 25fps(704×576), 25fps (352×288),
25fps (176×144)
Third Stream 60Hz: 30fps(2048×1536), 30fps(1920×1080), 30fps (1280×720), 30fps(704×480), 30fps (352×240),
30fps (176×120)
Image Compression H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20 users
Mini SD Memory Card Support up to 64GB Micro SD/SDHC/SDXC card. Support Edge recording
Accessories User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application programming Open-ended API, support Onvif, PSIA, CGI and Genetec
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
DS-1602ZJ DS-1602ZJ-Corner DS-1602ZJ-Pole DS-1602ZJ-Box DS-1619ZJ RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Hi-PoE&24 VAC, Max.60W
Working Temperature -40°C ~ 65°C (-40°F ~ 149°F)
Available models Humidity 90% or less
DS-2DF8336IV-AEL, High-PoE / 24VAC, outdoor Protection Level IP66 standard, TVS 6,000V lightning protection, surge protection and voltage transient protection
DS-2DF8336IV-AELW, Wiper, High-PoE / 24VAC, outdoor
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions Φ266.6(mm)×365.2(mm)
Weight (approx.) 8kg
Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
14 www.hikvision.com
