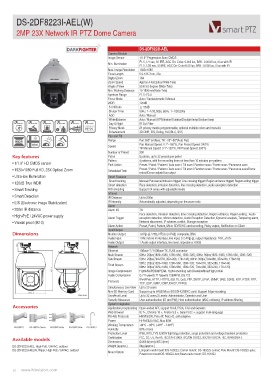

Page 10 - Hikvision Products Catalog 2015
P. 10
2DF8223I-AEL(W)
2MP 23X Network IR PTZ Dome Camera
DS-2DF8223I-AEL
Camera Module
Image Sensor 1/1.9’’ Progressive Scan CMOS
Min. Illumination F1.5, 1/1 sec, 50 IRE, AGC On: Color: 0.002 lux, B/W : 0.0002 lux, 0 lux with IR
F1.5, 1/30 sec, 50 IRE, AGC On: Color:0.02 lux, B/W : 0.002 lux, 0 lux with IR
Max. Image Resolution 1920×1080
Focal Length 5.9-135.7mm, 23x
Digital Zoom 16X
Zoom Speed Approx.4.4s(Optical Wide-Tele)
Angle of View 59.8-3.0 degree (Wide-Tele)
Min. Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.5~F3.4
Focus Mode Auto / Semiautomatic / Manual
WDR 120dB
S / N Ratio ≥ 55dB
Shutter Time 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
CODEC DEFOG Privacy Mask 24 privacy masks programmable; optional multiple colors and mosaics
Enhancement 3D DNR, EIS, Defog, HLC/BLC, SVC
Pan and Tilt
WDR Range Pan:360° endless; Tilt: -20°~90°(Auto Flip)
Intelligent Speed Pan Manual Speed: 0.1°~160°/s, Pan Preset Speed: 240°/s
Positioning Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s
Key features Number of Preset 300
• 1/1.9” HD CMOS sensor
• 1920×1080 Full HD, 23X Optical Zoom Patrol 8 patrols, up to 32 presets per patrol
• Ultra-low illumination
• 120dB True WDR Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
• Smart Tracking
• Smart Detection Park Action Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
• EIS (Electronic Image Stabilization)
• 200m IR distance Scheduled Task Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome
• High-PoE / 24VAC power supply reboot/Dome adjust/Aux output
• Vandal proof (IK10)
Smart Features
Smart tracking Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
Smart detection Face detection, intrusion detection, line crossing detection, audio exception detection
ROI encoding Support 24 areas with adjustable levels
Infrared
IR Distance Up to 200m
IR Intensity Automatically adjusted, depending on the zoom ratio
Alarm
Alarm I/O 7/2
Alarm Trigger Face detection, Intrusion detection, Line crossing detection, Region entrance, Region exiting, Audio
exception detection, Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm,
Network disconnect, IP address conflict, Storage exception
Alarm Action Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client
Dimensions Input/Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio Input 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface, line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Main Stream 50Hz: 25fps(1920×1080, 1280×960, 1280×720); 60Hz: 30fps(1920×1080, 1280×960, 1280×720)
Sub Stream 50Hz: 25fps(704×576, 352×288, 176×144); 60Hz: 30fps(704×480, 352×240, 176×120)
Third Stream 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
Image Compression H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20 users
Mini SD Memory Card Support up to 64GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
Accessories System Integration
Application programming Open-ended API, support Onvif, PSIA, CGI and Genetec
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Hi-PoE&24 VAC, Max.60W
DS-1602ZJ DS-1602ZJ-Corner DS-1602ZJ-Pole DS-1602ZJ-Box DS-1619ZJ Working Temperature -40°C ~ 65°C (-40°F ~ 149°F)
Humidity 90% or less
Protection Level IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
Available models Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
DS-2DF8223I-AEL, High-PoE / 24VAC, outdoor Dimensions Φ266.6(mm)×365.2(mm)
DS-2DF8223I-AELW, Wiper, High-PoE / 24VAC, outdoor
Weight (approx.) 8kg (approx.)
Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
10 www.hikvision.com
