Page 7 - Hikvision Products Catalog 2015
P. 7

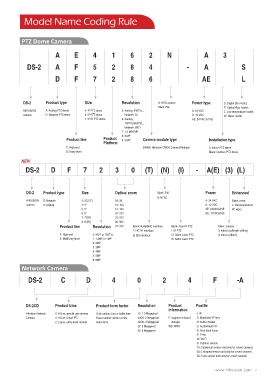

el Name Coding Rule
PTZ Dome Camera
AE4 1 6 2N A3
DS-2 A F 5 2 8 4 -A S
DF 7 2 8 6 AE L
DS-2 Product type Size Resolution N: NTSC system Power type S: Digital SDI model;
F: Optical fiber model;
HIKVISION A: Analog PTZ dome 4: 4” PTZ dome 5: Aanlog: 540TVL ; Blank: PAL A: 24 VAC L: Low temperature model;
camera D: Network PTZ dome 5: 5” PTZ dome D: 12 VDC W: Wiper model
7: 5” IR PTZ dome Network: D1 AE: 24 VAC & PoE
NEW
6: Aanlog:
DS-2
700TVL/650TVL;
Network: WD1
7: 1.3 MP/1MP
Product line Product 8: 2 MP Camera module type Installation type
Platform 9: 3 MP
F: High-end
E: Entry-level 2/4/6/8: Hikvision CMOS Camera Modules 3: Indoor PTZ dome
Blank: Outdoor PTZ dome
D F 7 2 3 0 (T) (N) (I) - A(E) (3) (L)
DS-2 Product type Size Optical zoom Blank: PAL Power Enhanced
HIKVISION D: Network 2: 2”(2.5”) 03: 3X N: NTSC A: 24 VAC Blank: none
camera D: 12 VDC L: low-temperature
A: Analog 4: 4” 10: 10X AE: 24VAC&PoE W: wiper
DE: 12VDC&PoE
5: 5” 12: 12X
6: 6” 20: 23X
7: 7”(IR) 23: 23X
8: 8”(IR) 30: 30X
Product line Resolution 37: 37X Blank: RJ45/BNC interface Blank: Non-IR PTZ Blank: outdoor
T: HDTVI interface I: IR PTZ 3: indoor (celling/in-celling)
F: High-end 0: WD1 or 700TVL I3: 300m Laser PTZ 4: indoor (others)
E: Mid/Entry-level 1: 1.3MP or 1MP S: SDI interface I5: 500m Laser PTZ
2: 2MP
3: 3MP
4: 4MP
5: 5MP
6: 6MP
Network Camera
DS-2 C D 4 0 2 4 F -A
DS-2CD Product Line Product form factor Resolution Product Postfix
information
Hikvision Network 6: 6-Line, special use camera Odd number: box or bullet form 12: 1.3 Megapixel -I: IR
Camera 4: 4-Line, Smart IPC Even number: dome or mini 24/25: 2 Megapixel F: support on-board -Z: Motorized VF lens
2: 2-Line, entry-level camera dome form 32/35: 3 Megapixel storage -H: built-in heater
52: 5 Megapixel -S: Audio/Alarm IO
65: 6 Megapixel WD: WDR -A: Auto back focus
-P: P-Iris
-W: Wi-Fi
-V: Outdoor version
-10: Cylindrical sensor unit (only for covert camera)
-20: L-shaped sensor unit (only for covert camera)
-30: Tube sensor unit (only for covert camera)
www.hikvision.com 7
