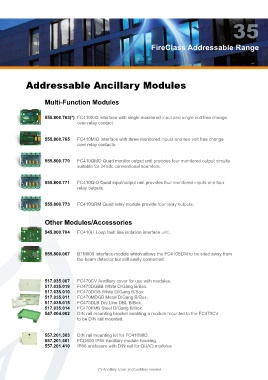

Page 35 - Catalog FireClass 2014
P. 35
35
FireClass Addressable Range
Addressable Ancillary Modules
Multi-Function Modules
555.800.763(*) FC410SIO Interface with single monitored input and single volt free change
over relay contact.
555.800.765 FC410MIO Interface with three monitored inputs and two volt free change
over relay contacts.
555.800.770 FC410QMO Quad monitor output unit provides four monitored output circuits
suitable for 24Vdc conventional sounders.
555.800.771 FC410QIO Quad input/output unit provides four monitored inputs and four
relay outputs.
555.800.773 FC410QRM Quad relay module provide four relay outputs.
Other Modules/Accessories
545.800.704 FC410LI Loop fault line isolation interface unit.
555.800.067 BTM800 Interface module which allows the FC410BDM to be sited away from
the beam detector but still easily connected.
517.035.007 FC470CV Ancillary cover for use with modules.
517.035.019 FC470DGBB White D/Gang B/Box.
517.035.010 FC470DGB White D/Gang B/Box.
517.035.011 FC470MDGB Metal D/Gang B/Box.
517.035.015 FC470DLB Dry Line DBL B/Box.
517.035.014 FC470FMB Steel D/Gang B/Box.
547.004.002 DIN rail mounting bracket enabling a module mounted to the FC470CV
to be DIN rail mounted.
557.201.303 DIN rail mounting kit for FC410MIO.
557.201.401 FCD800 IP65 Ancillary module housing.
557.201.410 IP66 enclosure with DIN rail for QUAD modules
(*) Ancillary cover and backbox needed
