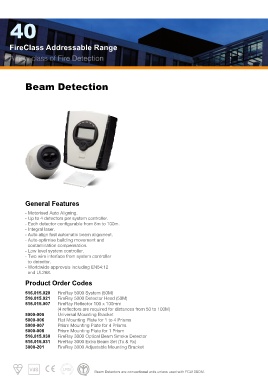

Page 40 - Catalog FireClass 2014
P. 40
FireClass Addressable Range
Beam Detection
General Features
- Motorised Auto Aligning.
- Up to 4 detectors per system controller.
- Each detector configurable from 8m to 100m.
- Integral laser.
- Auto align fast automatic beam alignment.
- Auto optimise building movement and
contamination compensation.
- Low level system controller.
- Two wire interface from system controller
to detector.
- Worldwide approvals including EN54:12
and UL268.
Product Order Codes
516.015.020 FireRay 5000 System (50M)
516.015.021 FireRay 5000 Detector Head (50M)
516.015.007 FireRay Reflector 100 x 100mm
(4 reflectors are required for distances from 50 to 100M)
5000-005 Universal Mounting Bracket
5000-006 Flat Mounting Plate for 1 to 4 Prisms
5000-007 Prism Mounting Plate for 4 Prisms
5000-008 Prism Mounting Plate for 1 Prism
516.015.030 FireRay 3000 Optical Beam Smoke Detector
516.015.031 FireRay 3000 Extra Beam Set (Tx & Rx)
3000-201 FireRay 3000 Adjustable Mounting Bracket
Beam Detectors are conventional units unless used with FC410BDM.
