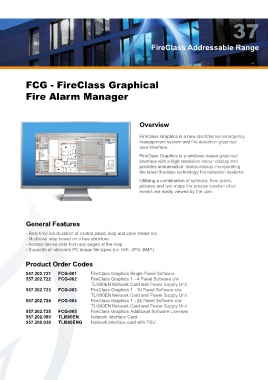

Page 37 - Catalog FireClass 2014

37

FireClass Addressable Range

FCG - FireClass Graphical
Fire Alarm Manager

Overview

FireClass Graphics is a new client/server emergency
management system and fire detection graphical
user interface.

FireClass Graphics is a windows based graphical
interface with a high resolution colour display and
provides annunciation, status display incorporating
the latest fireclass technology fire detection systems.

Utilising a combination of symbols, floor plans,
pictures and text maps the precise location of all
events are easily viewed by the user.

General Features

- Real time visualization of control panel, loop and zone status etc.
- Multilevel map based on a tree structure.
- Access device data from any pages of the map.
- Supports all standard PC image file types (i.e. GIF, JPG, BMP)

Product Order Codes

557.202.721 FCG-001 FireClass Graphics Single Panel Software
557.202.722 FCG-002 FireClass Graphics 1 - 4 Panel Software c/w
TLI800EN Network Card and Power Supply Unit
557.202.723 FCG-003 FireClass Graphics 1 - 10 Panel Software c/w
TLI800EN Network Card and Power Supply Unit
557.202.724 FCG-004 FireClass Graphics 1 - 24 Panel Software c/w
TLI800EN Network Card and Power Supply Unit
557.202.725 FCG-005 FireClass Graphics Additional Software Licenses
557.202.080 TLI800EN Network Interface Card
557.200.039 TLI800ENG Network interface card with PSU
