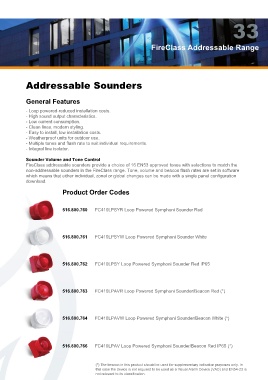

Page 33 - Catalog FireClass 2014

33

FireClass Addressable Range

Addressable Sounders

General Features

- Loop powered-reduced installation costs.
- High sound output characteristics.
- Low current consumption.
- Clean lines, modern styling.
- Easy to install, low installation costs.
- Weatherproof units for outdoor use.
- Multiple tones and flash rate to suit individual requirements.
- Integral line isolator.
Sounder Volume and Tone Control
FireClass addressable sounders provide a choice of 16 EN53 approved tones with selections to match the
non-addressable sounders in the FireClass range. Tone, volume and beacon flash rates are set in software
which means that either individual, zonal or global changes can be made with a single panel configuration
download.

Product Order Codes

516.800.760 FC410LPSYR Loop Powered Symphoni Sounder Red

516.800.761 FC410LPSYW Loop Powered Symphoni Sounder White

516.800.762 FC410LPSY Loop Powered Symphoni Sounder Red IP65

516.800.763 FC410LPAVR Loop Powered Symphoni Sounder/Beacon Red (*)

516.800.764 FC410LPAVW Loop Powered Symphoni Sounder/Beacon White (*)

516.800.766 FC410LPAV Loop Powered Symphoni Sounder/Beacon Red IP65 (*)

(*) The beacon in this product should be used for supplementary indication purposes only. In
this case the device is not required to be used as a Visual Alarm Device (VAD) and EN54-23 is
not relevant to its classification.
