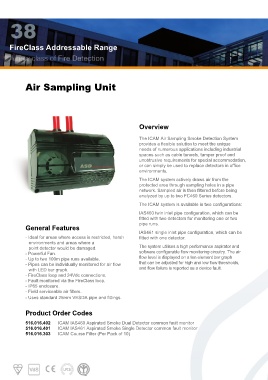

Page 38 - Catalog FireClass 2014
P. 38
FireClass Addressable Range
Air Sampling Unit
General Features Overview
- Ideal for areas where access is restricted, harsh The ICAM Air Sampling Smoke Detection System
environments and areas where a provides a flexible solution to meet the unique
point detector would be damaged. needs of numerous applications including industrial
- Powerful Fan. spaces such as cable tunnels, tamper proof and
- Up to two 100m pipe runs available. unobtrusive requirements for special accommodation,
- Pipes can be individually monitored for air flow or can simply be used to replace detectors in office
with LED bar graph. environments.
- FireClass loop and 24Vdc connections.
- Fault monitored via the FireClass loop. The ICAM system actively draws air from the
- IP65 enclosure. protected area through sampling holes in a pipe
- Field serviceable air filters. network. Sampled air is then filtered before being
analyzed by up to two FC460 Series detectors.
- Uses standard 25mm VESDA pipe and fittings.
The ICAM system is available in two configurations:
IAS460 twin inlet pipe configuration, which can be
fitted with two detectors for monitoring one or two
pipe runs.
IAS461 single inlet pipe configuration, which can be
fitted with one detector.
The system utilises a high performance aspirator and
software configurable flow monitoring circuitry. The air
flow level is displayed on a ten element bar graph
that can be adjusted for high and low flow thresholds,
and flow failure is reported as a device fault.
Product Order Codes
516.016.402 ICAM IAS460 Aspirated Smoke Dual Detector common fault monitor
516.016.401 ICAM IAS461 Aspirated Smoke Single Detector common fault monitor
516.016.303 ICAM Course Filter (Per Pack of 10)
