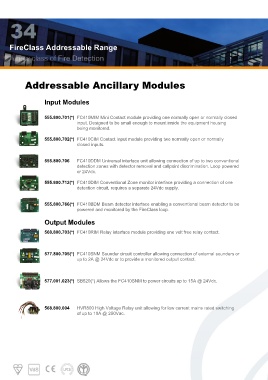

Page 34 - Catalog FireClass 2014
P. 34
FireClass Addressable Range
Addressable Ancillary Modules
Input Modules
555.800.701(*) FC410MIM Mini Contact module providing one normally open or normally closed
input. Designed to be small enough to mount inside the equipment housing
being monitored.
555.800.702(*) FC410CIM Contact Input module providing two normally open or normally
closed inputs.
555.800.706 FC410DDM Universal interface unit allowing connection of up to two conventional
detection zones with detector removal and callpoint discrimination. Loop powered
or 24Vdc.
555.800.712(*) FC410DIM Conventional Zone monitor interface providing a connection of one
detection circuit, requires a separate 24Vdc supply.
555.800.766(*) FC410BDM Beam detector interface enabling a conventional beam detector to be
powered and monitored by the FireClass loop.
Output Modules
568.800.703(*) FC410RIM Relay interface module providing one volt free relay contact.
577.800.705(*) FC410SNM Sounder circuit controller allowing connection of external sounders or
up to 2A @ 24Vdc or to provide a monitored output contact.
577.001.023(*) SB520(*) Allows the FC410SNM to power circuits up to 15A @ 24Vdc.
568.800.004 HVR800 High Voltage Relay unit allowing for low current mains rated switching
of up to 10A @ 250Vac.
