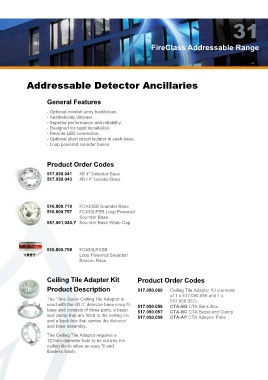

Page 31 - Catalog FireClass 2014

31

FireClass Addressable Range

Addressable Detector Ancillaries

General Features

- Optional conduit entry backboxes.
- Aesthetically discreet.
- Superior performance and reliability.
- Designed for rapid installation.
- Remote LED connection.
- Optional short circuit isolator in each base.
- Loop powered sounder bases.

Product Order Codes

517.050.041 4B 4” Detector Base
517.050.043 4B-I 4” Isolator Base

516.800.710 FC430SB Sounder Base

516.800.757 FC430LPSB Loop Powered

Sounder Base

557.001.040.Y Sounder Base White Cap

516.800.758 FC430LPASB

Loop Powered Sounder/

Beacon Base

Ceiling Tile Adapter Kit Product Order Codes

Product Description 517.050.060 Ceiling Tile Adaptor Kit (consists
of 1 x 517.050.056 and 1 x
The Time Saver Ceiling Tile Adaptor is 517.050.057)
used with the 4B 4” detector base snap fit 517.050.056 CTA-BB CTA Back Box
base and consists of three parts, a bezel 517.050.057 CTA-BC CTA Bezel and Clamp
and clamp that are fitted to the ceiling tile 517.050.058 CTA-AP CTA Adaptor Plate
and a back-box that carries the detector
and base assembly.

The Ceiling Tile Adaptor requires a
127mm diameter hole to be cut into the
ceiling tile to allow an easy fit and
flawless finish.
