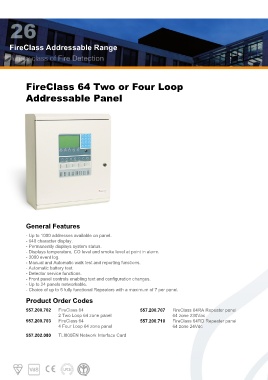

Page 26 - Catalog FireClass 2014
P. 26
FireClass Addressable Range
FireClass 64 Two or Four Loop
Addressable Panel
General Features
- Up to 1000 addresses available on panel.
- 640 character display.
- Permanently displays system status.
- Displays temperature, CO level and smoke level at point in alarm.
- 3000 event log.
- Manual and Automatic walk test and reporting functions.
- Automatic battery test.
- Detector service functions.
- Front panel controls enabling text and configuration changes.
- Up to 24 panels networkable.
- Choice of up to 5 fully functional Repeaters with a maximum of 7 per panel.
Product Order Codes
557.200.702 FireClass 64 557.200.707 FireClass 64RA Repeater panel
2 Two Loop 64 zone panel 64 zone 230Vac
557.200.703 FireClass 64 557.200.710 FireClass 64RD Repeater panel
4 Four Loop 64 zone panel 64 zone 24Vdc
557.202.080 TLI800EN Network Interface Card
