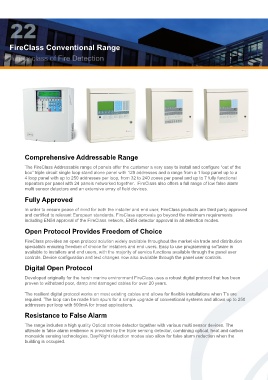

Page 22 - Catalog FireClass 2014
P. 22
FireClass Conventional Range
Comprehensive Addressable Range
The FireClass Addressable range of panels offer the customer a very easy to install and configure “out of the
box” triple circuit single loop stand alone panel with 128 addresses and a range from a 1 loop panel up to a
4 loop panel with up to 250 addresses per loop, from 32 to 240 zones per panel and up to 7 fully functional
repeaters per panel with 24 panels networked together. FireClass also offers a full range of low false alarm
multi sensor detectors and an extensive array of field devices.
Fully Approved
In order to ensure peace of mind for both the installer and end user, FireClass products are third party approved
and certified to relevant European standards. FireClass approvals go beyond the minimum requirements
including EN54 approval of the FireClass network, EN54 detector approval in all detection modes.
Open Protocol Provides Freedom of Choice
FireClass provides an open protocol solution widely available throughout the market via trade and distribution
specialists ensuring freedom of choice for installers and end users. Easy to use programming software is
available to installers and end users, with the majority of service functions available through the panel user
controls. Device configuration and text changes now also available through the panel user controls.
Digital Open Protocol
Developed originally for the harsh marine environment FireClass uses a robust digital protocol that has been
proven to withstand poor, damp and damaged cables for over 20 years.
The resilient digital protocol works on most existing cables and allows for flexible installations when T’s are
required. The loop can be made from spurs for a simple upgrade of conventional systems and allows up to 250
addresses per loop with 500mA for broad applications.
Resistance to False Alarm
The range includes a high quality Optical smoke detector together with various multi sensor devices. The
ultimate in false alarm resilience is provided by the triple sensing detector, combining optical, heat and carbon
monoxide sensing technologies. Day/Night detection modes also allow for false alarm reduction when the
building is occupied.
Comprehensive Addressable Range
The FireClass Addressable range of panels offer the customer a very easy to install and configure “out of the
box” triple circuit single loop stand alone panel with 128 addresses and a range from a 1 loop panel up to a
4 loop panel with up to 250 addresses per loop, from 32 to 240 zones per panel and up to 7 fully functional
repeaters per panel with 24 panels networked together. FireClass also offers a full range of low false alarm
multi sensor detectors and an extensive array of field devices.
Fully Approved
In order to ensure peace of mind for both the installer and end user, FireClass products are third party approved
and certified to relevant European standards. FireClass approvals go beyond the minimum requirements
including EN54 approval of the FireClass network, EN54 detector approval in all detection modes.
Open Protocol Provides Freedom of Choice
FireClass provides an open protocol solution widely available throughout the market via trade and distribution
specialists ensuring freedom of choice for installers and end users. Easy to use programming software is
available to installers and end users, with the majority of service functions available through the panel user
controls. Device configuration and text changes now also available through the panel user controls.
Digital Open Protocol
Developed originally for the harsh marine environment FireClass uses a robust digital protocol that has been
proven to withstand poor, damp and damaged cables for over 20 years.
The resilient digital protocol works on most existing cables and allows for flexible installations when T’s are
required. The loop can be made from spurs for a simple upgrade of conventional systems and allows up to 250
addresses per loop with 500mA for broad applications.
Resistance to False Alarm
The range includes a high quality Optical smoke detector together with various multi sensor devices. The
ultimate in false alarm resilience is provided by the triple sensing detector, combining optical, heat and carbon
monoxide sensing technologies. Day/Night detection modes also allow for false alarm reduction when the
building is occupied.
