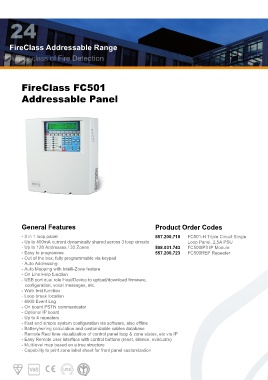

Page 24 - Catalog FireClass 2014

FireClass Addressable Range

FireClass FC501
Addressable Panel

General Features Product Order Codes

- 3 in 1 loop panel 557.200.718 FC501-H Triple Circuit Single
Loop Panel, 2,5A PSU
- Up to 400mA current dynamically shared across 3 loop circuits FC500IP3 IP Module
FC500REP Repeater
- Up to 128 Addresses / 32 Zones 508.031.743

- Easy to programme 557.200.723

- Out of the box, fully programmable via keypad

- Auto Addressing

- Auto Mapping with Intelli-Zone feature

- On Line Help function

- USB port dual role Host/Device to upload/download firmware,

configuration, vocal messages, etc.

- Walk test function

- Loop break location

- 4000 Event Log

- On board PSTN communicator

- Optional IP board

- Up to 4 repeaters

- Fast and simple system configuration via software, also offline

- Battery/wiring calculation and customizable cables database

- Remote Real time visualization of control panel loop & zone status, etc via IP

- Easy Remote user interface with control buttons (reset, silence, evacuate)

- Multilevel map based on a tree structure

- Capability to print zone label sheet for front panel customization
