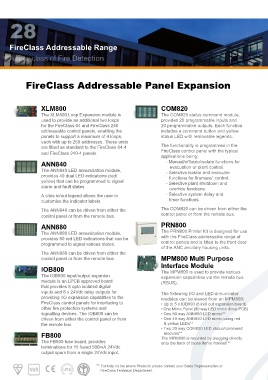

Page 28 - Catalog FireClass 2014
P. 28
FireClass Addressable Range
FireClass Addressable Panel Expansion
XLM800 COM820
The XLM800 Loop Expansion module is The COM820 status command module,
used to provide an additional two loops provides 20 programmable inputs and
for the FireClass 64 and FireClass 240 20 programmable outputs. Each function
addressable control panels, enabling the includes a command button and yellow
panels to support a maximum of 4 loops, status LED with removable legends.
each with up to 250 addresses. These units
are fitted as standard to the FireClass 64-4 The functionality is programmed in the
and FireClass 240-4 panels. FireClass control panel with the typical
applications being:
ANN840 - Manual/off/auto/isolate functions for
evacuation or plant control.
The ANN840 LED annunciation module, - Selective isolate and evacuate
provides 40 dual LED indications (red/ functions for firemans’ control.
yellow) that can be programmed to signal - Selective plant shutdown and
alarm and fault states. override functions.
- Selective system delay and
A slide in/out legend allows the user to timer functions.
customise the indicator labels.
The COM820 can be driven from either the
The ANN840 can be driven from either the control panel or from the remote bus.
control panel or from the remote bus.
PRN800
ANN880
The PRN800 Printer Kit is designed for use
The ANN880 LED annunication module, with the FireClass addressable range of
provides 80 red LED indications that can be control panels and is fitted to the front door
programmed to signal various states. of the ANC ancillary housing units.
The ANN880 can be driven from either the MPM800 Multi Purpose
control panel or from the remote bus. Interface Module
IOB800 The MPM800 is used to provide various
expansion capabilities via the remote bus
The IOB800 input/output expanion (RBUS).
module is an LPCB approved board
that provides 8 opto isolated digital The following I/O and LED annunciator
inputs and 8 x 24Vdc relay outputs for modules can be slaved from an MPM800:
providing I/O expansion capabilties to the • Up to 5 x IOB800 (8 in/8 out expansion board)
FireClass control panels for interfacing to • One Mimic Panel (80 way LED mimic driver PCB)
other fire protection systems and • One 80 way ANN880 LED mimic**
signalling devices. The IOB800 can be • One 40 way ANN840 LED mimic using red
driven from either the control panel or from & yellow LEDs**
the remote bus. • Two 20 way COM820 LED status/command
modules**
FB800 The MPM800 is mounted by plugging directly
onto the back of those items marked **
The FB800 fuse board, provides
terminations for 15 fused 500mA 24Vdc
output spurs from a single 24Vdc input.
** For help on the above Products please contact your Sales Representative or
FireClass Technical Department.
