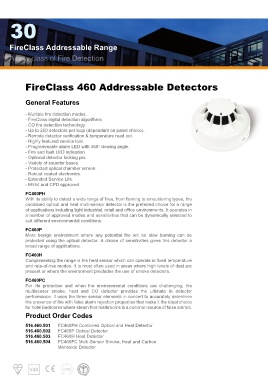

Page 30 - Catalog FireClass 2014
P. 30
FireClass Addressable Range
FireClass 460 Addressable Detectors
General Features
- Multiple fire detection modes.
- FireClass digital detection algorithms.
- CO fire detection technology.
- Up to 250 detectors per loop (dependant on panel choice).
- Remote detector verification & temperature read out.
- Highly featured service tool.
- Programmable alarm LED with 360o viewing angle.
- Fire and fault LED indication.
- Optional detector locking pin.
- Variety of sounder bases.
- Protected optical chamber screen.
- Robust coated electronics.
- Extended Service Life.
- EN54 and CPD approved.
FC460PH
With its ability to detect a wide range of fires, from flaming to smouldering types, the
combined optical and heat multi-sensor detector is the preferred choice for a range
of applications including light industrial, retail and office environments. It operates in
a number of approved modes and sensitivities that can be dynamically selected to
suit different environmental conditions.
FC460P
More benign environment where any potential fire will be slow burning can be
protected using the optical detector. A choice of sensitivities gives this detector a
broad range of applications.
FC460H
Complimenting the range is the heat sensor which can operate in fixed temperature
and rate-of-rise modes. It is most often used in areas where high levels of dust are
present or where the environment precludes the use of smoke detectors.
FC460PC
For life protection and when the environmental conditions are challenging, the
multisensor smoke, heat and CO detector provides the ultimate in detector
performance. It uses the three sensor elements in concert to accurately determine
the presence of fire with false alarm rejection properties that make it the ideal choice
for hotel bedrooms where steam from bathrooms is a common source of false alarms.
Product Order Codes
516.460.501 FC460PH Combined Optical and Heat Detector
516.460.502 FC460P Optical Detector
516.460.503 FC460H Heat Detector
516.460.504 FC460PC Multi-Sensor Smoke, Heat and Carbon
Monoxide Detector
