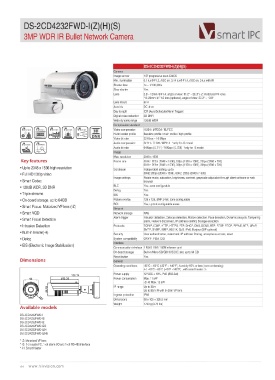

Page 64 - Catalog Hikvision 2014
P. 64
2CD4232FWD-I(Z)(H)(S)
3MP WDR IR Bullet Network Camera
DS-2CD4232FWD-I(Z)(H)(S)
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination 0.1 lux@F1.2, AGC on, 0.14 lux@F1.4, AGC on, 0 lux with IR
Shutter time 1s ~ 1/100,000s
Slow shutter Yes
Lens 2.8 ~ 12mm @F1.4, angle of view: 91.2° ~ 28.3° (-Z: motorized VF lens)
* 8~20mm @F1.6 lens (optional), angle of view: 33.2° ~ 13.8°
Lens mount Φ14
Auto iris DC drive
Day & night ICR (Auto/Schedule/Alarm Trigger)
Digital noise reduction 3D DNR
Wide dynamic range 120dB WDR
Compression standard
Video compression H.264 / MPEG4 / MJPEG
CODEC H.264 codec profile Baseline profile / main profile / high profile
VQD Video bit rate 32 Kbps ~ 16 Mbps
Key features Audio compression G.711 / G.726 / MP2L2 *only for -S model
• Up to 2048 x 1536 high resolution
• Full HD1080p video Audio bit rate 64Kbps (G.711) / 16Kbps (G.726) *only for -S model
• Smart Codec
• 120dB WDR, 3D DNR Image
• Triple streams
• On-board storage, up to 64GB Max. resolution 2048 x 1536
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD Frame rate 50 Hz: 20fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1280 x 720)
• Smart Facial Detection 60 Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
• Intrusion Detection
• Built-in heater(-H) 3rd stream Independent setting, up to:
• Defog 50Hz: 20fps (2048 x 1536), 60Hz: 20fps (2048 x 1536)
• EIS (Electronic Image Stabilization)
Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web
Dimensions browser
Available models BLC Yes, zone configurable
DS-2CD4232FWD-I Defog Yes
DS-2CD4232FWD-IS
DS-2CD4232FWD-IZ EIS Yes
DS-2CD4232FWD-IZS
DS-2CD4232FWD-IZH Picture overlay 128 x 128, BMP 24bit, zone configurable
DS-2CD4232FWD-IZHS
* -Z: Motorized VF lens ROI Yes, up to 4 configurable areas.
* -S: 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
* -H: Smart Heater Network
64 www.hikvision.com Network storage NAS
Alarm trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering
alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security User authentication, watermark, IP address filtering, anonymous access, reset
System compatibility ONVIF, PSIA, CGI
Interface
Communication interface 1 RJ45 10M / 100M ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
Reset button Yes
General
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
-H: -40°C ~ 60°C (-40°F ~140°F) , with smart heater on
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption Max. 11.5W
-Z/-H: Max. 12.5W
IR range Up to 30m
Up to 80m IR with 8~20m VF lens
Ingress protection IP66
Dimensions 98 x 105 × 328.8 mm
Weight 1700 g (3.75 lbs)
