Page 67 - Catalog Hikvision 2014

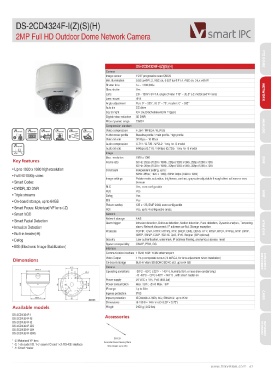

P. 67
2CD4324F-I(Z)(S)(H)
2MP Full HD Outdoor Dome Network Camera
DS-2CD4324F-I(Z)(S)(H) PTZ DOME
Camera
Image sensor 1/2.8” progressive scan CMOS
Min. illumination 0.02 lux@F1.2, AGC on, 0.027 lux@F1.4, AGC on, 0 lux with IR
Shutter time 1s ~ 1/100,000s NETWORK
Slow shutter Yes
Lens 2.8 ~ 12mm @F1.4, angle of view: 113° ~ 33.8° (-Z: motorized VF lens)
Lens mount Φ14
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 75°, rotation: 0° ~ 355°
Auto iris DC drive
Day & night ICR (Auto/Schedule/Alarm Trigger)
Digital noise reduction 3D DNR ANALOG
Wide dynamic range DWDR
Compression standard
Video compression H.264 / MPEG4 / MJPEG
CODEC H.264 codec profile Baseline profile / main profile / high profile
VQD Video bit rate 32 Kbps ~ 16 Mbps
Key features Audio compression G.711 / G.726 / MP2L2 *only for -S model
• Up to 1920 x 1080 high resolution
• Full HD1080p video Audio bit rate 64Kbps (G.711) / 16Kbps (G.726) *only for -S model
• Smart Codec
• DWDR, 3D DNR Image
• Triple streams
• On-board storage, up to 64GB Max. resolution 1920 x 1080 DVR
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD Frame rate 50 Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
• Smart Facial Detection 60 Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
• Intrusion Detection
• Built-in heater(-H) 3rd stream Independent setting, up to:
• Defog 50Hz: 25fps (1920 x 1080), 60Hz: 30fps (1920 x 1080)
• EIS (Electronic Image Stabilization)
Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web
Dimensions browser
Available models BLC Yes, zone configurable
DS-2CD4324F-I HLC Yes NVR
DS-2CD4324F-IS
DS-2CD4324F-IZ Defog Yes
DS-2CD4324F-IZS
DS-2CD4324F-IZH EIS Yes
DS-2CD4324F-IZHS
* -Z: Motorized VF lens Picture overlay 128 x 128, BMP 24bit, zone configurable
* -S: 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
* -H: Smart Heater ROI Yes, up to 4 configurable areas.
Network
Network storage NAS ATM DVR
Alarm trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering
alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security User authentication, watermark, IP address filtering, anonymous access, reset
System compatibility ONVIF, PSIA, CGI
Interface
Communication interface 1 RJ45 10M / 100M ethernet port ENCODER
DECODER
Video Output 1 Vp-p composite output (75 Ω/RCA, for lens adjustment when installation)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
General
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
-H: -40°C ~ 60°C (-40°F ~140°F) , with smart heater on
Power supply 24 VAC ± 10%, PoE (802.3af)
Power consumption Max. 12W ; -Z/-H: Max. 13W
IR range Up to 30m CARD
Ingress protection IP66
Impact protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
Dimensions Φ 159.8 × 146 mm (Φ 6.29” × 5.75”)
Weight 2100 g (4.62 lbs)
Accessories
NETWORK
STORAGE
DS-1681
Extensible Dome Cleaning Wand
Wand length: up to 4.5m
www.hikvision.com 67
