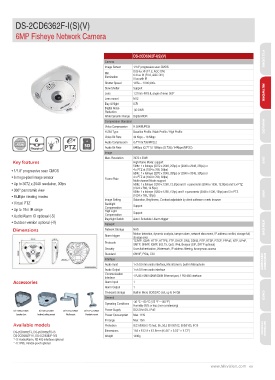

2CD6362F-I(S)(V)
6MP Fisheye Network Camera
DS-2CD6362F-I(S)(V) PTZ DOME
Camera
Image Sensor 1/1.8” progressive scan CMOS NETWORK
Min. 0.05 lux @ (F1.2, AGC ON)
Illumination 0.3 lux @ (F2.8, AGC ON )
Shutter Speed 0 lux with IR
1/25s ~ 1/100,000s
Slow Shutter Support
Lens 1.27mm @F2.8, angle of view: 360°
Lens mount M12
Day & Night ICR
Digital Noise 3D DNR
Reduction Digital WDR
Wide Dynamic Range
Compression Standard ANALOG
Video Compression H.264/MJPEG
H.264 Type Baseline Profile / Main Profile / High Profile
6 Video Bit Rate 32 Kbps – 16 Mbps
Megapixel PTZ Audio Compression G.711/G.726/MP2L2
Audio Bit Rate 64Kbps (G.711) / 16Kbps (G.726) / 64Kbps (MP2l2)
Key features Max. Resolution 3072 x 2048 DVR
High-frame Mode: support
• 1/1.8” progressive scan CMOS Frame Rate 50Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 25fps) or NVR
• 6 mega-pixel image sensor 4 x PTZ at (1024 x 768, 30fps)
• Up to 3072 x 2048 resolution, 30fps Image Setting 60Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 30fps) or ATM DVR
• 360° panoramic view Backlight 4 x PTZ at (1024 x 768, 30fps)
• Multiple viewing modes Compensation Multi-channel Mode: support
• Virtual PTZ High Light 50Hz: 1 x fisheye (1280 x 1280, 12.5fps) and 1 x panoramic (2048 x 1536, 12.5fps) and 3 x PTZ
• Up to 15m IR range Compensation (1024 x 768, 12.5fps)
• Audio/Alarm IO optional (-S) Day/night Switch 60Hz: 1 x fisheye (1280 x 1280, 15fps) and 1 x panoramic (2048 x 1536, 15fps) and 3 x PTZ
• Outdoor version optional (-V) (1024 x 768, 15fps)
Saturation, Brightness, Contrast adjustable by client software or web browser
Dimensions
Support
Support
Auto / Schedule / Alarm trigger
Network
Network Storage NAS
Alarm trigger Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full,
storage error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
Security SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP, SRTP optional)
User Authentication, Watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI ENCODER
DECODER
Interface
Audio Input 1-ch 3.5 mm audio interface, Mic in/Line in. built-in Microphone
Accessories Audio Output 1-ch 3.5 mm audio interface
Communication 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface
Interface 1
Alarm Input
Alarm Output 1
On-board storage Built-in Micro SD/SDXC slot, up to 64 GB CARD
DS-1280ZJ-DM25 DS-1281ZJ-DM25 DS-1273ZJ-DM25 DS-1271ZJ-DM25 General -30 °C – 60 °C (-22 °F – 140 °F)
Junction box Inclined ceiling mount Wall mount Pendant mount Operating Conditions Humidity 95% or less (non-condensing)
Power Supply DC12V±10% / PoE
Power Consumption Max. 11W
IR range Max. 15m NETWORK
STORAGE
Available models Protection IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155, IK10
DS-2CD6362F-I, DS-2CD6362FD-IS Dimensions 164 x 152.8 x 43.8mm (6.46” x 6.02” x 1.72”)
DS-2CD6362F-IV, DS-2CD6362F-IVS
* -S: Audio/Alarm, RS 485 interface optional Weight 1400g
* -V: IP66, Vandal-proof optional
www.hikvision.com 69
