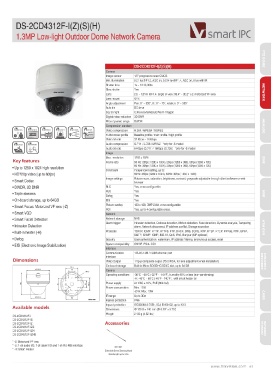

Page 65 - Catalog Hikvision 2014
P. 65
2CD4312F-I(Z)(S)(H)
1.3MP Low-light Outdoor Dome Network Camera
DS-2CD4312F-I(Z)(S)(H) PTZ DOME
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination 0.01 lux@F1.2, AGC on, 0.014 lux@F1.4, AGC on, 0 lux with IR
Shutter time 1s ~ 1/100,000s NETWORK
Slow shutter Yes
Lens 2.8 ~ 12mm @F1.4, angle of view: 98.4° ~ 30.2° (-Z: motorized VF lens)
Lens mount Φ14
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 75°, rotation: 0° ~ 355°
Auto iris DC drive
Day & night ICR (Auto/Schedule/Alarm Trigger)
Digital noise reduction 3D DNR ANALOG
Wide dynamic range DWDR
Compression standard
60FPS Video compression H.264 / MPEG4 / MJPEG
CODEC H.264 codec profile Baseline profile / main profile / high profile
VQD Video bit rate 32 Kbps ~ 16 Mbps
Key features Audio compression G.711 / G.726 / MP2L2 *only for -S model
• Up to 1280 x 1024 high resolution
• HD720p video (up to 60fps) Audio bit rate 64Kbps (G.711) / 16Kbps (G.726) *only for -S model
• Smart Codec
• DWDR, 3D DNR Image
• Triple streams
• On-board storage, up to 64GB Max. resolution 1280 x 1024 DVR
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD Frame rate 50 Hz: 25fps (1280 x 1024), 25fps (1280 x 960), 50fps (1280 x 720)
• Smart Facial Detection 60 Hz: 30fps (1280 x 1024), 30fps (1280 x 960), 60fps (1280 x 720)
• Intrusion Detection
• Built-in heater (-H) 3rd stream Independent setting, up to:
• Defog 50Hz: 25fps (1280 x 1024), 60Hz: 30fps (1280 x 1024)
• EIS (Electronic Image Stabilization)
Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web
Dimensions browser
BLC Yes, zone configurable
HLC Yes NVR
Defog Yes
EIS Yes
Picture overlay 128 x 128, BMP 24bit, zone configurable
ROI Yes, up to 4 configurable areas.
Network
Network storage NAS ATM DVR
Alarm trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering
alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security User authentication, watermark, IP address filtering, anonymous access, reset
System compatibility ONVIF, PSIA, CGI
Interface
Communication 1 RJ45 10M / 100M ethernet port ENCODER
interface DECODER
Video Output 1 Vp-p composite output (75 Ω/RCA, for lens adjustment when installation)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
General
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
-H: -40°C ~ 60°C (-40°F ~140°F) , with smart heater on
Power supply 24 VAC ± 10%, PoE (802.3af)
Power consumption Max. 12W CARD
-Z/-H: Max. 13W
IR range Up to 30m
Ingress protection IP66
Available models Impact protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
DS-2CD4312F-I Dimensions Φ 159.8 × 146 mm (Φ 6.29” × 5.75”)
DS-2CD4312F-IS
DS-2CD4312F-IZ Weight 2100 g (4.62 lbs)
DS-2CD4312F-IZS
DS-2CD4312F-IZH Accessories NETWORK
DS-2CD4312F-IZHS STORAGE
* -Z: Motorized VF lens
* -S: 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface DS-1681
* -H: Smart Heater Extensible Dome Cleaning Wand
Wand length: up to 4.5m
www.hikvision.com 65
