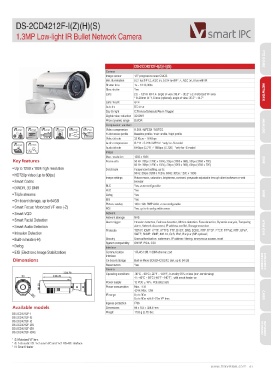

2CD4212F-I(Z)(H)(S)
1.3MP Low-light IR Bullet Network Camera
DS-2CD4212F-I(Z)(H)(S) PTZ DOME
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination 0.01 lux@F1.2, AGC on, 0.014 lux@F1.4, AGC on, 0 lux with IR
Shutter time 1s ~ 1/100,000s NETWORK
Slow shutter Yes
Lens 2.8 ~ 12mm @F1.4, angle of view: 98.4° ~ 30.2° (-Z: motorized VF lens)
* 8~20mm @F1.6 lens (optional), angle of view: 35.5° ~14.7°
Lens mount Φ14
Auto iris DC drive
Day & night ICR (Auto/Schedule/Alarm Trigger)
Digital noise reduction 3D DNR
Wide dynamic range DWDR ANALOG
Compression standard
Video compression H.264 / MPEG4 / MJPEG
60FPS H.264 codec profile Baseline profile / main profile / high profile
CODEC Video bit rate 32 Kbps ~ 16 Mbps
VQD Audio compression G.711 / G.726 / MP2L2 *only for -S model
Key features Audio bit rate 64Kbps (G.711) / 16Kbps (G.726) *only for -S model
• Up to 1280 x 1024 high resolution
• HD720p video (up to 60fps) Image
• Smart Codec
• DWDR, 3D DNR Max. resolution 1280 x 1024 DVR
• Triple streams
• On-board storage, up to 64GB Frame rate 50 Hz: 25fps (1280 x 1024), 25fps (1280 x 960), 50fps (1280 x 720)
• Smart Focus: Motorized VF lens (-Z) 60 Hz: 30fps (1280 x 1024), 30fps (1280 x 960), 60fps (1280 x 720)
• Smart VQD
• Smart Facial Detection 3rd stream Independent setting, up to:
• Smart Audio Detection 50Hz: 25fps (1280 x 1024), 60Hz: 30fps (1280 x 1024)
• Intrusion Detection
• Built-in heater(-H) Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web
• Defog browser
• EIS (Electronic Image Stabilization)
Dimensions BLC Yes, zone configurable
HLC Yes NVR
Defog Yes
EIS Yes
Picture overlay 128 x 128, BMP 24bit, zone configurable
ROI Yes, up to 4 configurable areas.
Network
Network storage NAS
Alarm trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering ATM DVR
alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security User authentication, watermark, IP address filtering, anonymous access, reset
System compatibility ONVIF, PSIA, CGI
Interface
Communication 1 RJ45 10M / 100M ethernet port ENCODER
interface DECODER
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
Reset button Yes
General
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
-H: -40°C ~ 60°C (-40°F ~140°F) , with smart heater on
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption Max. 11W CARD
-Z/-H: Max. 12W
IR range Up to 30m
Up to 80m with 8~20m VF lens
Available models Ingress protection IP66
DS-2CD4212F-I Dimensions 98 x 105 × 328.8 mm
DS-2CD4212F-IS
DS-2CD4212F-IZ Weight 1700 g (3.75 lbs)
DS-2CD4212F-IZS
DS-2CD4212F-IZH NETWORK
DS-2CD4212F-IZHS STORAGE
* -Z: Motorized VF lens
* -S: 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
* -H: Smart Heater
www.hikvision.com 61
