Page 60 - Catalog Hikvision 2014
P. 60

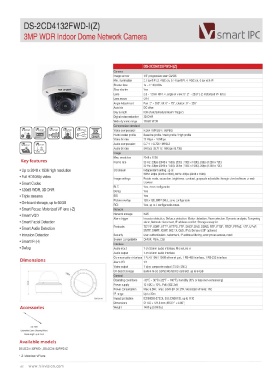

2CD4132FWD-I(Z)
3MP WDR Indoor Dome Network Camera
DS-2CD4132FWD-I(Z)
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination 0.1 lux@F1.2, AGC on, 0.14 lux@F1.4, AGC on, 0 lux with IR
Shutter time 1s ~ 1/100,000s
Slow shutter Yes
Lens 2.8 ~ 12mm @F1.4, angle of view: 91.2° ~ 28.3° (-Z: motorized VF lens)
Lens mount Φ14
Angle Adjustment Pan: 0° ~ 355°, tilt: 0° ~ 75°, rotation: 0° ~ 355°
Auto iris DC drive
Day & night ICR (Auto/Schedule/Alarm Trigger)
Digital noise reduction 3D DNR
Wide dynamic range 120dB WDR
Compression standard
Video compression H.264 / MPEG4 / MJPEG
CODEC H.264 codec profile Baseline profile / main profile / high profile
VQD Video bit rate 32 Kbps ~ 16 Mbps
Key features Audio compression G.711 / G.726 / MP2L2
• Up to 2048 x 1536 high resolution
• Full HD1080p video Audio bit rate 64Kbps (G.711) / 16Kbps (G.726)
• Smart Codec
• 120dB WDR, 3D DNR Image
• Triple streams
• On-board storage, up to 64GB Max. resolution 2048 x 1536
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD Frame rate 50 Hz: 20fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1280 x 720)
• Smart Facial Detection 60 Hz: 20fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
• Smart Audio Detection
• Intrusion Detection 3rd stream Independent setting, up to:
• Smart IR (-I) 50Hz: 20fps (2048 x 1536), 60Hz: 20fps (2048 x 1536)
• Defog
Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web
Dimensions browser
Acvcaeilsasbolreiems odels BLC Yes, zone configurable
DS-1681 Defog Yes
Extensible Dome Cleaning Wand
EIS Yes
Wand length: up to 4.5m
Picture overlay 128 x 128, BMP 24bit, zone configurable
Available models
ROI Yes, up to 4 configurable areas.
DS-2CD4132FWD-I, DS-2CD4132FWD-IZ
* -Z: Motorized VF lens Network
60 www.hikvision.com Network storage NAS
Alarm trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering
alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security User authentication, watermark, IP address filtering, anonymous access, reset
System compatibility ONVIF, PSIA, CGI
Interface
Audio input 1-ch 3.5mm audio interface, Mic in/Line in
Audio output 1-ch 3.5mm audio interface
Communication interface 1 RJ45 10M / 100M ethernet port, 1 RS-485 interface, 1 RS-232 interface
Alarm I/O 1/1
Video output 1 Vp-p composite output (75 Ω / BNC)
On-board storage Built-in micro SD/SDHC/SDXC card slot, up to 64GB
General
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption Max. 6.5W ; Max. 9.5W (IR on: 2W, Motorized VF lens: 1W)
IR range Up to 30m
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Dimensions Φ 140 × 121.8 mm (Φ5.51” × 4.80”)
Weight 1400 g (3.09 lbs)
