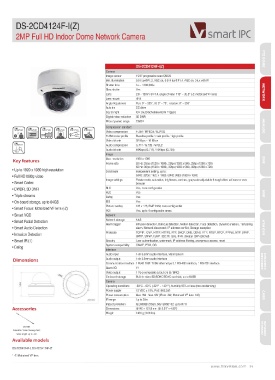

P. 59
2CD4124F-I(Z)
2MP Full HD Indoor Dome Network Camera
DS-2CD4124F-I(Z) PTZ DOME
Camera 1/2.8” progressive scan CMOS NETWORK
Image sensor 0.01 lux@F1.2, AGC on, 0.014 lux@F1.4, AGC on, 0 lux with IR
Min. illumination 1s ~ 1/100,000s ANALOG
Shutter time Yes
Slow shutter 2.8 ~ 12mm @F1.4, angle of view: 113° ~ 33.8° (-Z: motorized VF lens)
Lens Φ14
Lens mount Pan: 0° ~ 355°, tilt: 0° ~ 75°, rotation: 0° ~ 355°
Angle Adjustment DC drive
Auto iris ICR (Auto/Schedule/Alarm Trigger)
Day & night 3D DNR
Digital noise reduction DWDR
Wide dynamic range
Compression standard
Video compression H.264 / MPEG4 / MJPEG
CODEC H.264 codec profile Baseline profile / main profile / high profile
VQD Video bit rate 32 Kbps ~ 16 Mbps
Key features Audio compression G.711 / G.726 / MP2L2
• Up to 1920 x 1080 high resolution
• Full HD1080p video Audio bit rate 64Kbps (G.711) / 16Kbps (G.726)
• Smart Codec
• DWDR, 3D DNR Image
• Triple streams
• On-board storage, up to 64GB Max. resolution 1920 x 1080 DVR
• Smart Focus: Motorized VF lens (-Z)
• Smart VQD Frame rate 50 Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
• Smart Facial Detection 60 Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
• Smart Audio Detection
• Intrusion Detection 3rd stream Independent setting, up to:
• Smart IR (-I) 50Hz: 25fps (1920 x 1080), 60Hz: 30fps (1920 x 1080)
• Defog
Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web
Dimensions browser
AAcvcaeilsasbolreiems odels BLC Yes, zone configurable
DS-1681 HLC Yes NVR
Extensible Dome Cleaning Wand
Defog Yes
Wand length: up to 4.5m
EIS Yes
Available models
Picture overlay 128 x 128, BMP 24bit, zone configurable
DS-2CD4124F-I, DS-2CD4124F-IZ
* -Z: Motorized VF lens ROI Yes, up to 4 configurable areas.
Network
Network storage NAS ATM DVR
Alarm trigger Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering
alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
Security User authentication, watermark, IP address filtering, anonymous access, reset
System compatibility ONVIF, PSIA, CGI
Interface
Audio input 1-ch 3.5mm audio interface, Mic in/Line in ENCODER
DECODER
Audio output 1-ch 3.5mm audio interface
Communication interface 1 RJ45 10M / 100M ethernet port, 1 RS-485 interface, 1 RS-232 interface
Alarm I/O 1/1
Video output 1 Vp-p composite output (75 Ω / BNC)
On-board storage Built-in micro SD/SDHC/SDXC card slot, up to 64GB
General
Operating conditions -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af) CARD
Power consumption Max. 6W ; Max. 9W (IR on: 2W, Motorized VF lens: 1W)
IR range Up to 30m
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Dimensions Φ140 × 121.8 mm (Φ 5.51” × 4.80”)
Weight 1400 g (3.09 lbs)
NETWORK
STORAGE
www.hikvision.com 59
