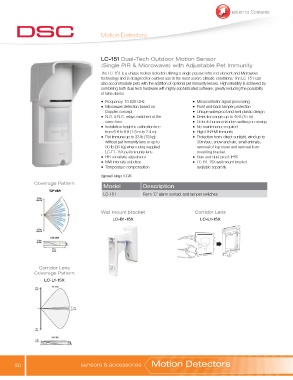

Page 34 - Catalog DSC 2014

return to Contents

Motion Detectors

LC-151 Dual-Tech Outdoor Motion Sensor
(Single PIR & Microwave) with Adjustable Pet Immunity

The LC-151 is a unique motion detector utilizing a single passive infra-red element and Microwave
technology and is designed for outdoor use in the most severe climatic conditions. The LC-151 can
also accommodate pets with the addition of optional pet immunity lenses. High reliability is achieved by
combining both dual tech hardware with highly sophisticated software, greatly reducing the possibility
of false alarms.

•• Frequency: 10.525 GHz on •••••••• Microcontroller signal processing
Microwave detection based Front and back tamper protection
Unique waterproof and seal plastic design
• Doppler concept switched at the Detection range: up to 49 ft (15 m)
N.O. & N.C. relays Detects human intruders walking or running
No maintenance required
• same time height is calibration free High RFI/EMI immunity
Installation Protection from: direct sunlight, wind up to

• from 6 ft to 8 ft (1.8 m to 2.4 m)
Pet Immune up to 33 lb (15 kg)

without pet immunity lens or up to 30m/sec, snow and rain, small animals,

80 lb (36 kg) when using supplied removal of top cover and removal from

••• LC-F1-15X pet immunity lens • • mounting bracket
PIR sensitivity adjustment Rain and dust proof: IP65
MW intensity selection LC-B1-15X wall mount bracket
Temperature compensation
available separetly

Approval Listings: FCC/IC

Coverage Pattern Model Description

LC-151 Form ‘C’ alarm contact and tamper switches

Wall mount bracket Corridor Lens
LC-B1-15X LC-L1-15X

Corridor Lens
Coverage Pattern

LC-L1-15X
