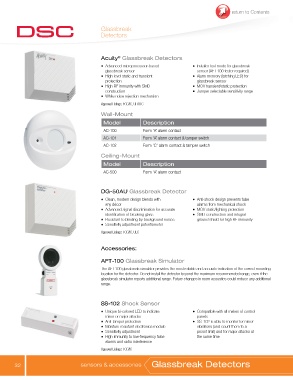

Page 36 - Catalog DSC 2014

return to Contents

Glassbreak
Detectors

Acuity® Glassbreak Detectors

• Advanced microprocessor-based • Installer test mode for glassbreak
• glassbreak sensor • sensor (AFT-100 tester required)
High-level static and transient Alarm memory (latching LED) for

• HpriogthecRtFioinmmunity with SMD •• glassbreak sensor
• Wcohnistetruncotisioenrejection mechanism MOV transient/static protection
Jumper selectable sensitivity range

Approval Listings: FCC/IC, UL/ULC

Wall-Mount Description
Model
Form ‘A’ alarm contact
AC-100 Form ‘A’ alarm contact & tamper switch
AC-101 Form ‘C’ alarm contact & tamper switch
AC-102

Ceiling-Mount

Model Description

AC-500 Form ‘A’ alarm contact

DG-50AU Glassbreak Detector

• Clean, modern design blends with • Anti-shock design prevents false
• any décor •• alarms from mechanical shock
Advanced signal discrimination for accurate MOV static/lighting protection
SMD construction and integral
•• identification of breaking glass
Resistant to blinding by background noises ground shield for high RF immunity
Sensitivity adjustment potentiometer

Approval Listings: FCC/IC, ULC

Accessories:

AFT-100 Glassbreak Simulator

The AFT-100 glassbreak simulator provides the most reliable and accurate indication of the correct mounting
location for the detector. Do not install the detector beyond the maximum recommended range, even if the
glassbreak simulator reports additional range. Future changes in room acoustics could reduce any additional
range.

SS-102 Shock Sensor

• Unique bi-colored LED to indicate • Compatible with all makes of control
•• •• minor or major attacks • SpaSn-e1l0s2 is able to monitor for minor
Anti-tamper protection
Moisture-resistant electronics module vibrations (and count them to a
Sensitivity adjustment preset limit) and for major attacks at
High immunity to low-frequency false the same time

alarms and radio interference

Approval Listings: FCC/IC
